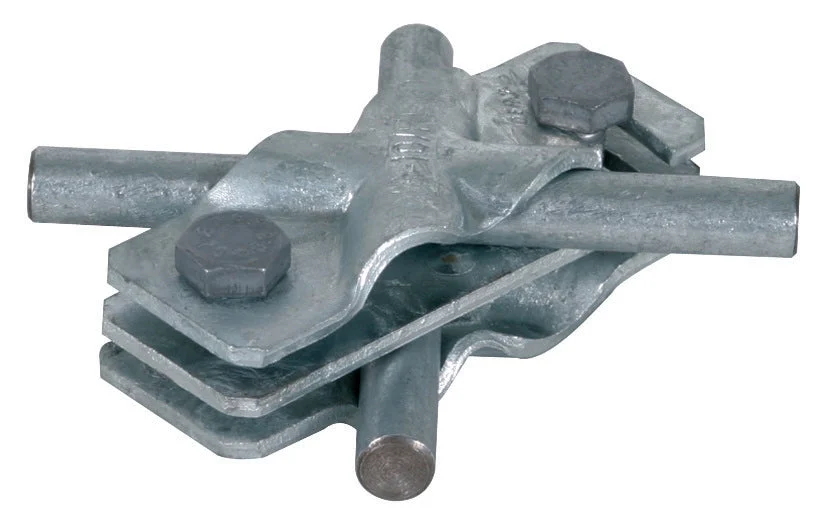

The Dehn SVP connector for lightning protection is made from steel and features a cross-coupling type of connection. It has a diameter of 1 8 – 10mm for the round conductor, a diameter of 1 30mm for the flat conductor, and a diameter of 2 8 – 10mm for the second round conductor. The surface of the unit is thermally galvanized, ensuring durability and reliability. The type of fastening screws used are hexagonal screws, offering robust fastening. It also includes diagonal and parallel connecting clamps for cross and parallel connections and features a slotted upper part, eliminating the need to detach the screws, and a slotted intermediate plate.
Specifications
Type of connector : Cross connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
