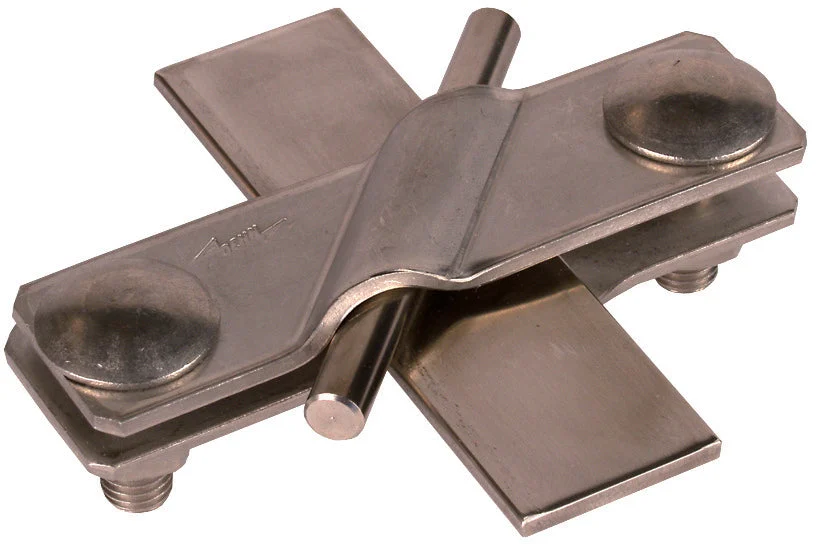

The Dehn SV connector is designed for lightning protection, with the material made of RVS 316 (V4A). It features a cross coupling type of connection, with a round conductor diameter ranging from 7 to 10mm and a flat conductor diameter from 30 to 40mm. It has no surface protection, making it untreated. Also, it is a diagonal connecting clamp that complies with EN 62561-1, suitable for cross and T connections of both round and flat conductors with a width of up to 40mm. It is equipped with M10 screws that come with anti-rotation protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
