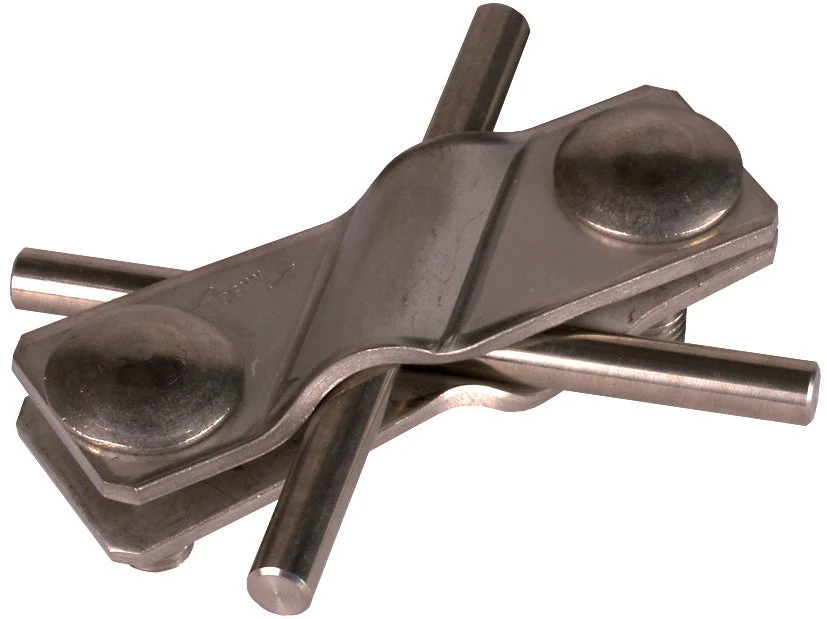

This is a Dehn SV connector for lightning protection built from stainless steel 316 (V4A). It is designed for cross-coupling connections with diameters of round conductors ranging between 7 – 10mm and flat conductors with a diameter of 30mm. The connector does not feature surface protection and is untreated. Additionally, it aligns with EN 62561-1 specifications for diagonal connecting clamps, or in German, Schräg-Verbinder-Klemmen, suitable for cross and T connections of round and flat conductors. The component also includes M10 screws with anti-rotation protection for added security and stability.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
