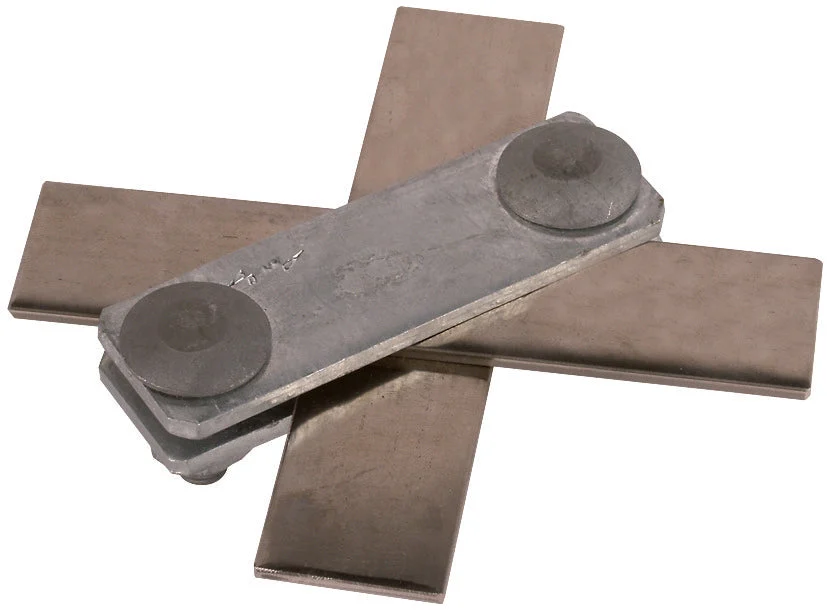

This is a Dehn SV connector for lightning protection, made from RVS 316 (V4A) stainless steel. It is designed for cross coupling connections with a diameter for round conductors of both 1 30mm and 2 30mm. The surface protection is untreated. The type of attachment screws is not specified. The lightning current carrying capacity is 10/350 µs 100kA. In addition, it can function as a diagonal connecting clamp according to EN 62561-1 for cross and T connections of two flat conductors and it includes M10 screws with anti-rotation protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Other
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
