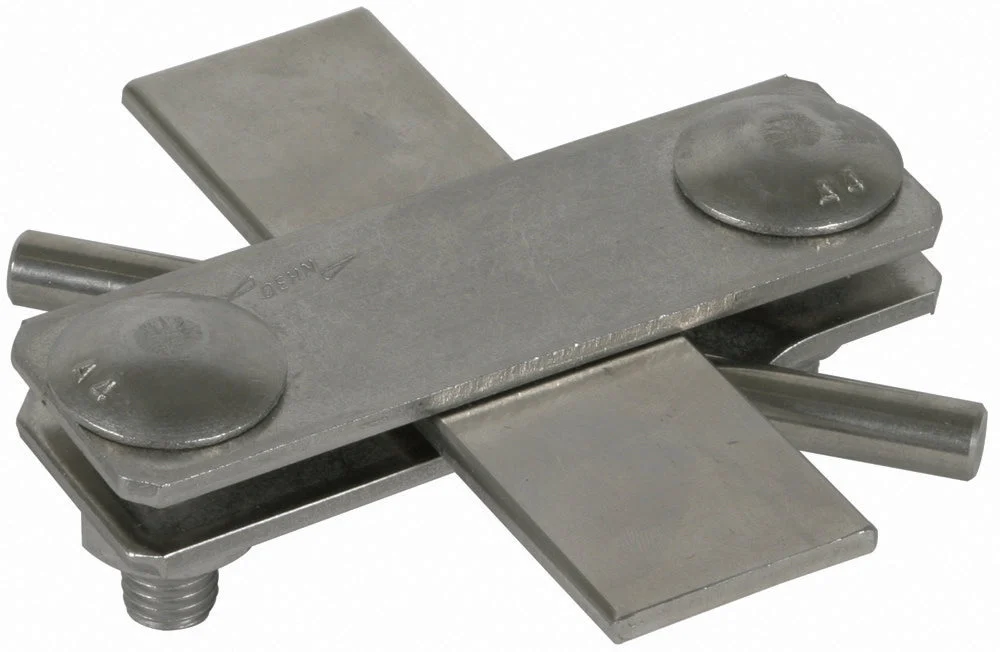

The Dehn SV connector is used for lightning protection and made from RVS 316 (V4A) stainless steel. It is used for cross-coupling connections with a round conductor diameter ranging from 1 7 – 10mm and a flat conductor diameter of 1 30mm. This connector does not have surface protection and remains untreated. The type of fastening screws used are flat head screws. It has a lightning current carrying capacity of 100kA for 10/350 µs. It features diagonal connecting clamps compliant with EN 62561-1 and is designed for cross and T connections of one round and one flat conductor. The device comes with M10 screws with an anti-rotation protection feature.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
