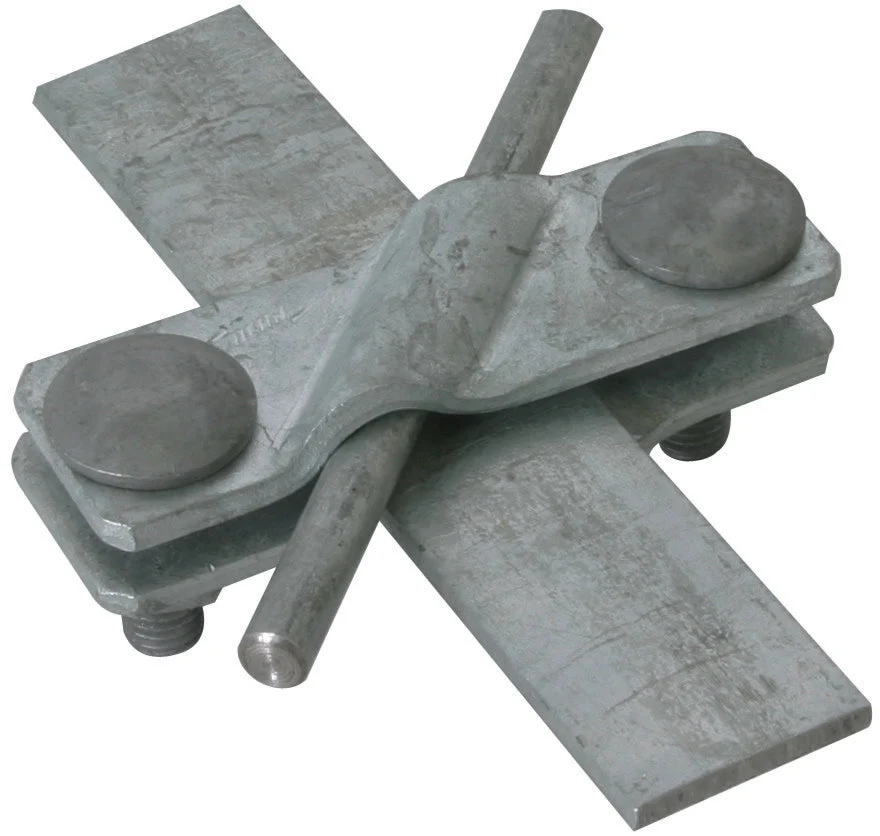

The Dehn SV connector is crucial for lightning protection and is made of steel. It features a cross coupling type of connection, abiding by EN 62561-1 standards for diagonal connecting clamps for cross and T connections of conductors. It can accommodate round conduction diameters from 7mm to 10mm and a flat conductor diameter up to 30mm. The connector uses M10 screws with anti-rotation protection, ensuring a secure connection. Additionally, it benefits from surface protection that is thermally galvanized, enhancing its durability.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
