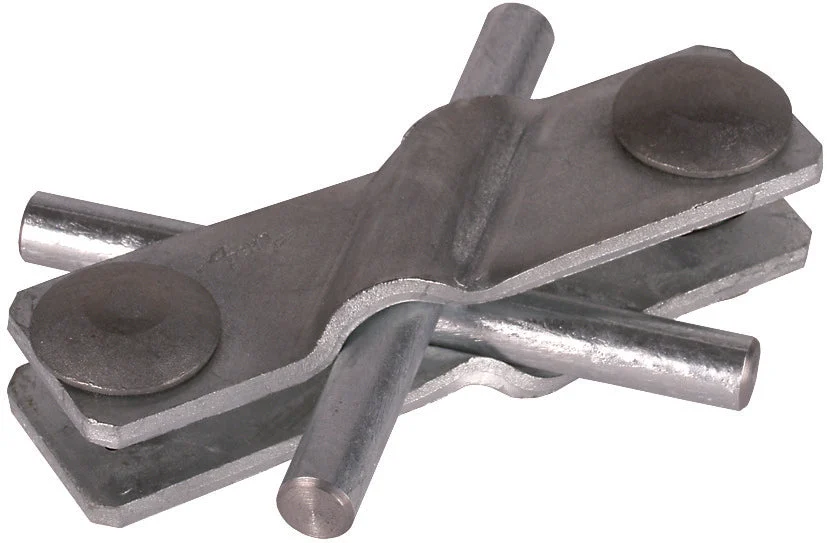

The Dehn SV connector is used for lightning protection and is made from steel. It is designed for cross coupling connection and meets the standards of EN 62561-1. The connector is suitable for round conductors with diameter ranging from 7 to 10mm and flat conductors with a diameter ranging from 30 to 40mm. The connector is also capable of managing T connections for both round and flat conductors up to 40mm wide. M10 screws with anti-rotation protection are included to secure the connection. The surface of the unit features thermal galvanization for added protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
