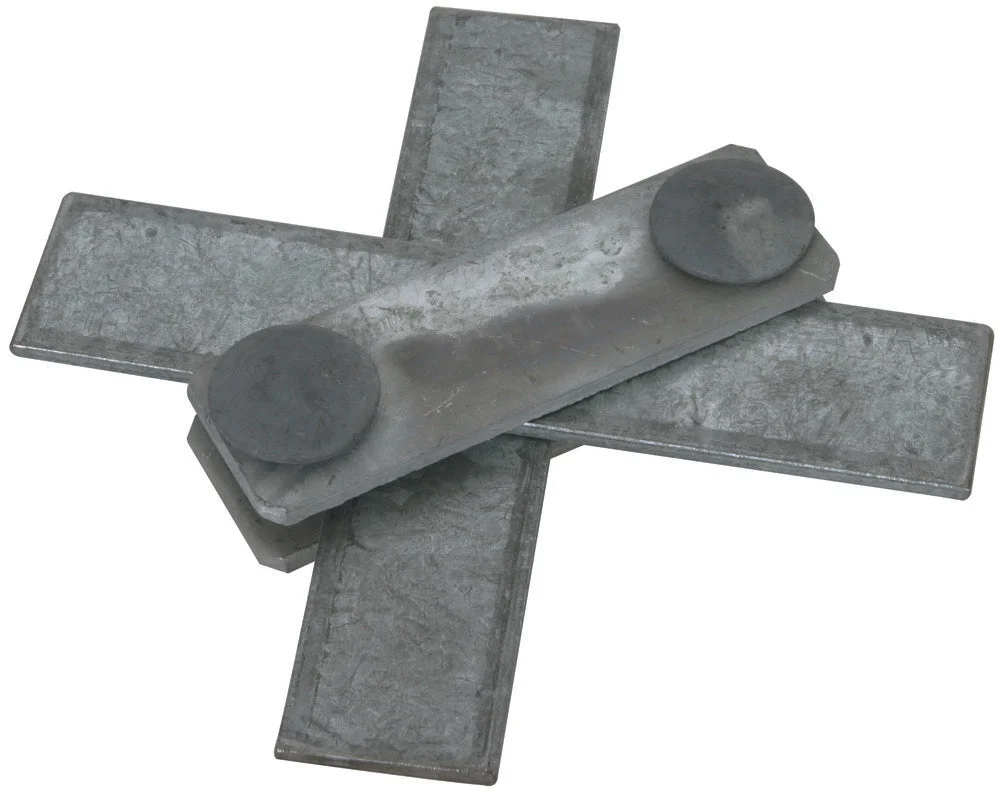

Dehn SV Clamp St/Tzn For Fl 30/Fl 30mm – 308230

The Dehn SV connector, designed for lightning protection, is a robust piece of technical equipment. Crafted from steel, it uses a cross-coupling type connection with a flat conductor diameter of 30mm. As an added layer of protection and durability, it features a thermally galvanized surface. It employs flat head screws for fastening and offers excellent lightning current carrying capacity at 10/350 µs 100kA. According to EN 62561-1, it’s suitable for cross and T connections of two flat conductors and comes with M10 screws outfitted with anti-rotation protection.

Specifications

Type of connector : T-/cross-/parallel connector
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
