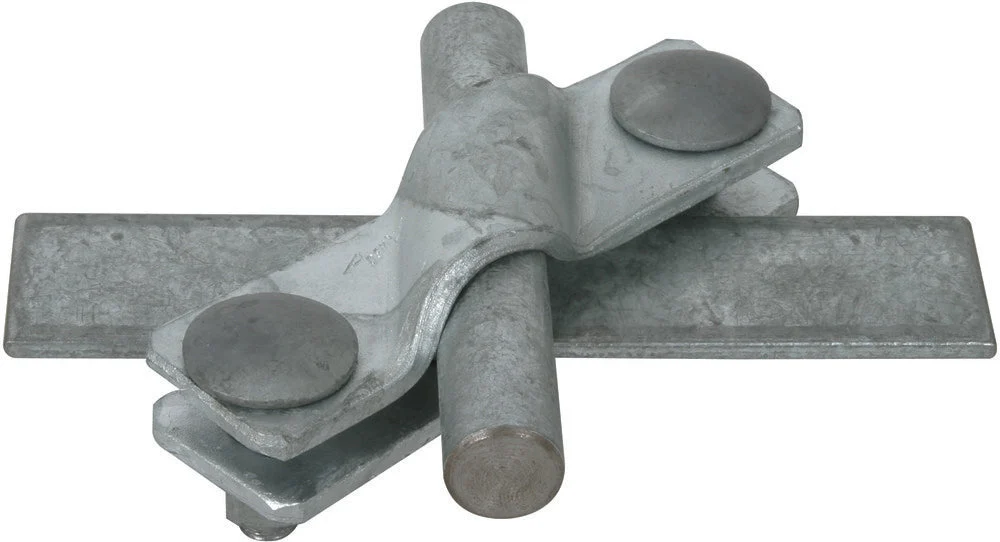

This is a Dehn SV connector for lightning protection, made from steel. The connector implements a cross coupling type of connection, accommodating a round conductor with a diameter of 7-10mm and a second round conductor diameter of 16mm. It also supports a flat conductor with a diameter of 30-40mm. The connector surface is thermally galvanized for added protection and durability. The attachment screws are of the flat head type for secure fastening. It complies with EN 62561-1 for diagonal connecting clamps, used for cross and T connections of round or flat conductors with earth entry rods, specifically Rd 16 mm. It uses M10 screws with anti-rotation protection for stable connections.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Diameter round conductor 2 (mm) : 16 mm to 16 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
