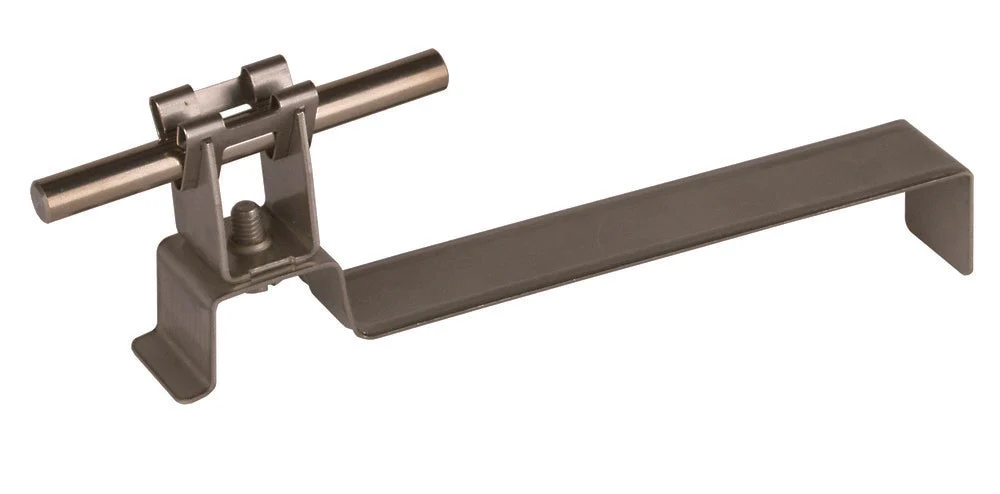

Dehn Stainless Steel Roof Conductor Holder 20mm For 8mm Rod – 206359

The DEHNgrip roof conductor holder is designed for lightning protection, with a particular application on slanted roof surfaces. This equipment, primarily made of stainless steel (RVS 304, V2A), has an insertion design for ease of hanging into roof tiles. The conductor holder has a building height of 20mm and features a loose conductor routing. Moreover, it secures the conductor with a clamp bracket and can accommodate a nominal conductor diameter of 8mm. Its carrier part measures 169mm in length. Perfect for affixing air-termination and down conductors on roofs, the DEHNgrip roof conductor holder efficiently ensures the safety and structural integrity of your roofing system.

Specifications

Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Roof surface pitched
Mounting method : To hang in
Material of holder : Stainless steel V2A
Material of carrier : Stainless steel V2A
Length carrier (mm) : 169
Assembly height conductor holder (mm) : 20
