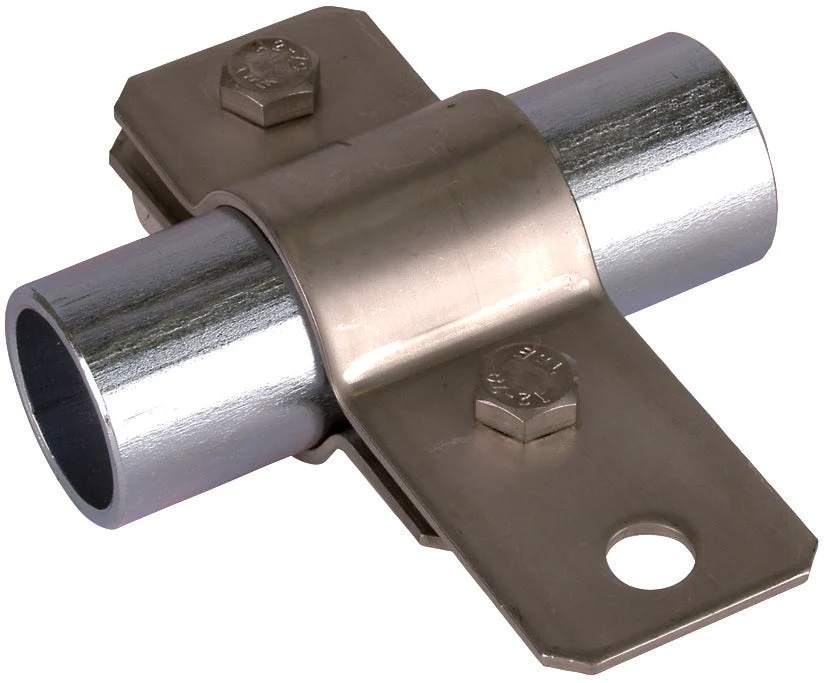

The Earthing pipe clamp lightning protection adheres to the EN 62561-1 standard and is designed for integrating pipes into the protective and functional equipotential bonding as per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3. This type StSt model features M8 screws and a connection for flat conductors with M10 screws and nuts. It is suitable for round conductors ranging from 7-10 mm, such as a KS connector.
Specifications
Clamping/chucking range (mm) : 21 mm to 21 mm
Min. clamping range inch : 1/2 inch
Max. clamping range inch : 1/2 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
