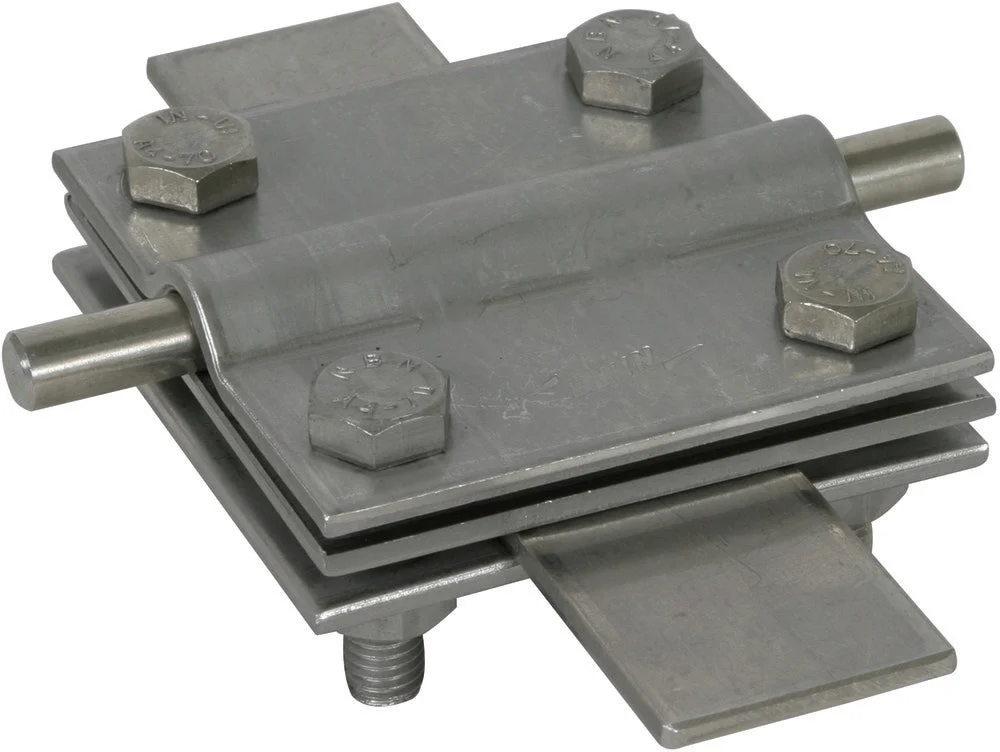

DEHN Stainless Steel Cross Unit RD 7-10 FL 40mm Interlock – 319229

This is a Dehn connector designed for lightning protection, made of stainless steel 316 (V4A). The connector has a cross-coupling type of connection, designed to connect round conductors with a diameter range of 1 7 – 10mm, as well as flat conductors with a diameter range of 1 30 – 40mm and 2 30 – 40mm. This unit is compliant with EN 62561-1, allowing both aboveground and underground connections. The unit comes without surface protection and is untreated. The attachment screws are hexagonal, and the unit comes with an intermediate plate and M8 screws.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
