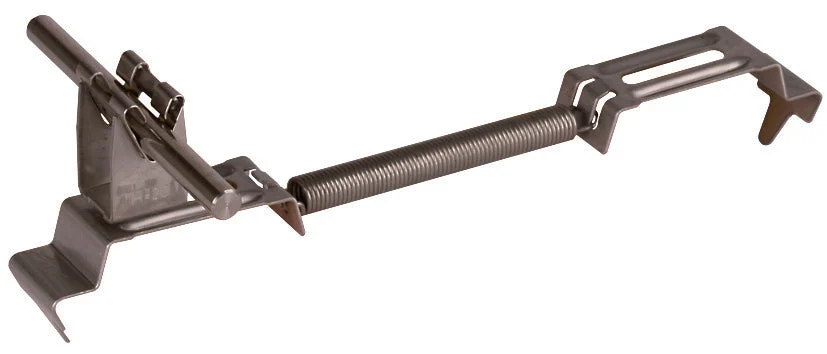

The SPANNgrip roof conductor holder is designed for lightning protection and functions to secure the air-termination conductor at the ridge tiles. It utilizes a stainless steel (RVS 304 or V2A) tension spring for fixation and comes with an adjustable conductor holder DEHNgrip that offers loose conductor routing for enhanced flexibility. It is capable of securing a conductor with a nominal diameter of 8mm. Moreover, it has a building height of the conductor holder of 20mm and a span range of 180-280mm. The holder comes in a stainless steel (RVS 304 or V2A) variant, making it suited for roof frost applications.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Stainless steel V2A
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 20
