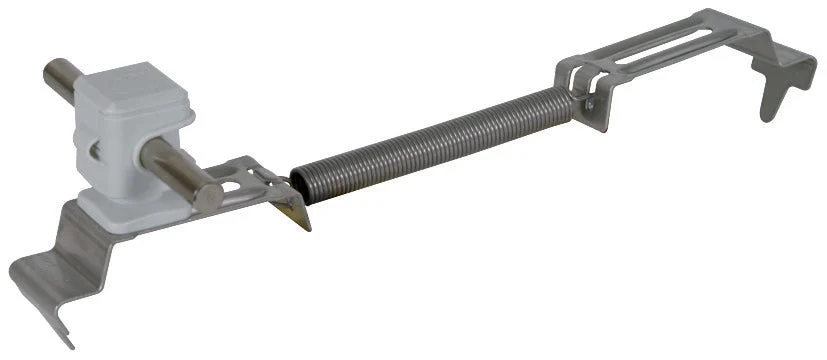

The Dehn SPANNsnap roof conductor holder is used for securing the air-termination conductor at the ridge tiles. It features a stainless steel tension spring and DEHNsnap conductor holder for loose conductor routing, which can be adjusted laterally. The holder is made of weather-resistant, UV-stabilised, halogen-free plastic. The construction height of the conductor holder is 16mm, and it can accommodate a nominal conductor diameter of 8mm. It offers a tension range between 180 – 280mm.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 16
