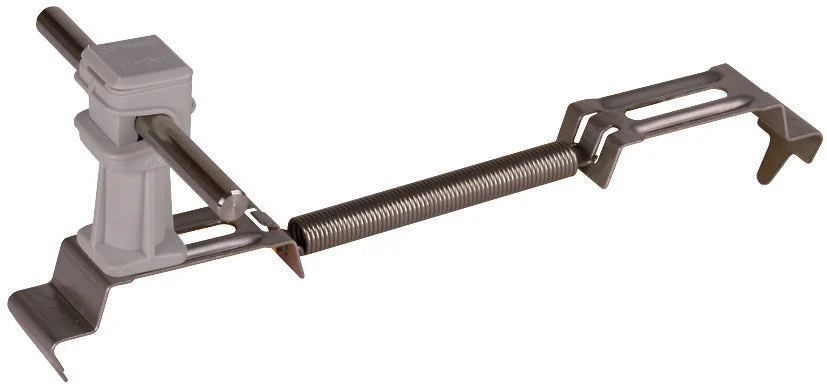

The SPANNsnap Roof Conductor Holder is designed to secure the air-termination conductor at the ridge tiles. The holder is fixed with a stainless steel tension spring and comes with a DEHNsnap conductor holder for loose conductor routing, which can be laterally adjusted. It is constructed from weather-resistant, UV-stabilised, and halogen-free plastic. The conductor holder has a building height of 36mm and is made from RVS 304 stainless steel and copper. It has a nominal conductor diameter of 8mm and a span range of 180 – 280mm.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Copper
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 36
