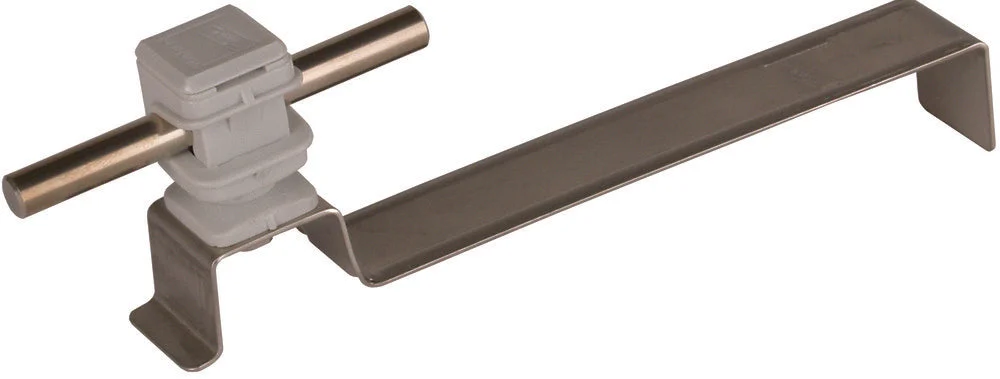

The Dehn DEHNsnap roof conductor holder for lightning protection is designed with an angled brace for fixing air-termination and down conductors on roofs. It is designed to hang into roof tiles and has a holder height of 16mm. The holder supports conductor diameters up to 8mm and features a clip clamp for securing the conductor. The holder is constructed from weather-resistant and UV-stabilised plastic while the support is made from 304 (V2A) stainless steel and is 169mm long. The holder is entirely halogen-free.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Roof surface pitched
Mounting method : To hang in
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Length carrier (mm) : 169
Assembly height conductor holder (mm) : 16
