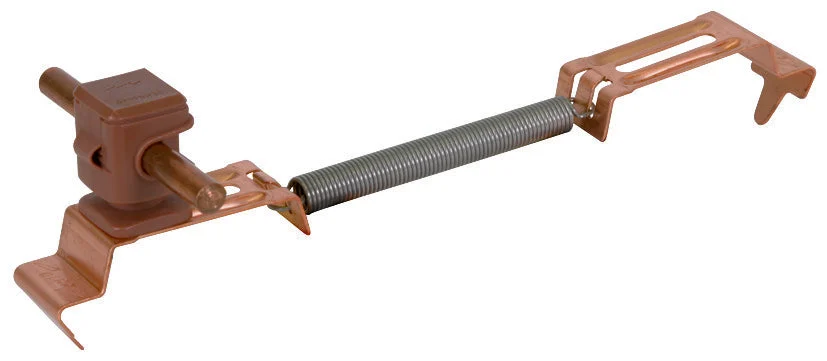

The Dehn SPANNsnap roof conductor holder is designed for use in lightning protection and attaches to the ridge tiles. This holder is fixed with a stainless steel tension spring, and comes with a DehnSnap conductor holder for loose conductor routing. Lateral adjustments can be made for the best fit. The span range of the holder is between 180 – 280mm. It is constructed with copper support and a plastic holder which is weather-resistant, UV-stabilized and halogen-free. The nominal conductor diameter is 8mm and the holder height is 16mm.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Copper
Assembly height conductor holder (mm) : 16
