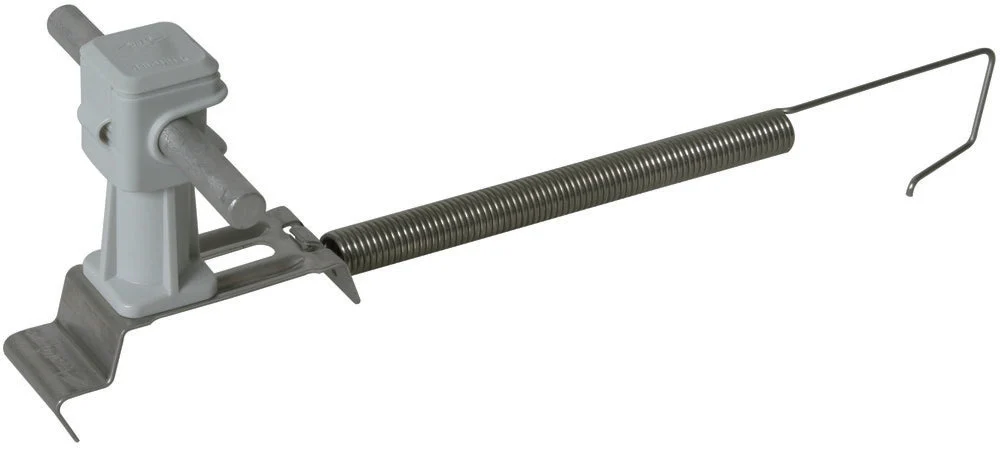

The SPANNsnap Light is a roof conductor holder used for lightning protection, specifically to secure the air-termination conductor at the ridge tiles. It is equipped with a StSt tension spring and a DEHNsnap conductor holder for loose conductor routing which is laterally adjustable. The holder has a conductor diameter of 8mm and a mounting height of 36mm. It features a tension range of 180-280mm. Made of UV-stabilised, halogen-free, weather-resistant plastic with a stainless steel 304 (V2A) carrier, it ensures durability and resistance to environmental elements.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 36
