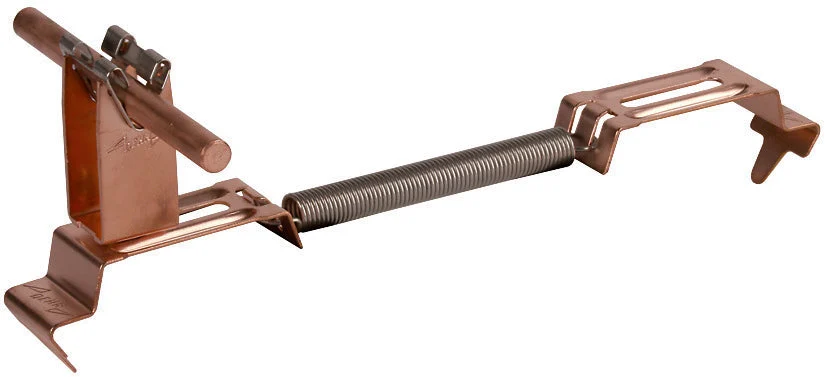

The Dehn SPANNgrip is a roof conductor holder used for lightning protection, specifically designed to secure the air-termination conductor at ridge tiles. It features adjustable conductor fixing with a tension spring and a DEHNgrip conductor holder that offers loose conductor routing. The component is made of copper and can accommodate a nominal conductor diameter of 8mm. Further, it has a conductor holder construction height of 32mm and a spanning range of between 180 and 280mm. The system is laterally adjustable for user convenience.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Copper
Material of carrier : Copper
Assembly height conductor holder (mm) : 32
