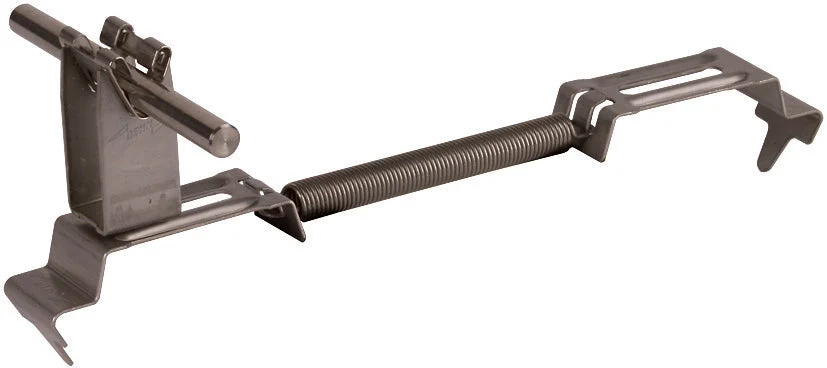

The Dehn SPANNgrip roof conductor holder is a lightning protection component designed to secure the air-termination conductor at ridge tiles. The holder is equipped with a stainless steel (RVS 304, V2A) tension spring for firm fixation, and a RVS 304 (V2A) DEHNgrip conductor holder. The routings for the conductor are loose and laterally adjustable for maximum flexibility. The height of the conductor holder measures 32mm and it can accommodate conductors with a nominal diameter of 8mm. The tension spring has a span range of 180 – 280mm. This holder is best suited for sloped roof surfaces.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Roof surface pitched
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Stainless steel V2A
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 32
