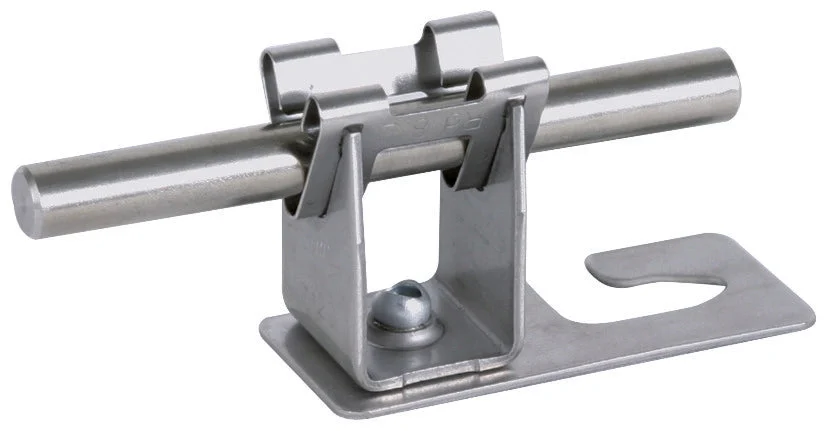

This is a roof conductor holder designed for the installation of air-termination systems on corrugated sheet roofs, made for profiles 5 and 8. The product boasts a straight design and comes with DEHNgrip, allowing for loose conductor routing. The holder and carrier are composed of RVS 304 (V2A) and have a nominal conductor diameter of 8mm. The holder’s construction height is 20mm, and the carrier’s length is 58mm. This product is screwable and ideal for lightning protection, featuring a clamp shell for secure conductor attachment.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Corrugated sheet roof
Mounting method : Screwable
Material of holder : Stainless steel V2A
Material of carrier : Stainless steel V2A
Length carrier (mm) : 58
Assembly height conductor holder (mm) : 20
