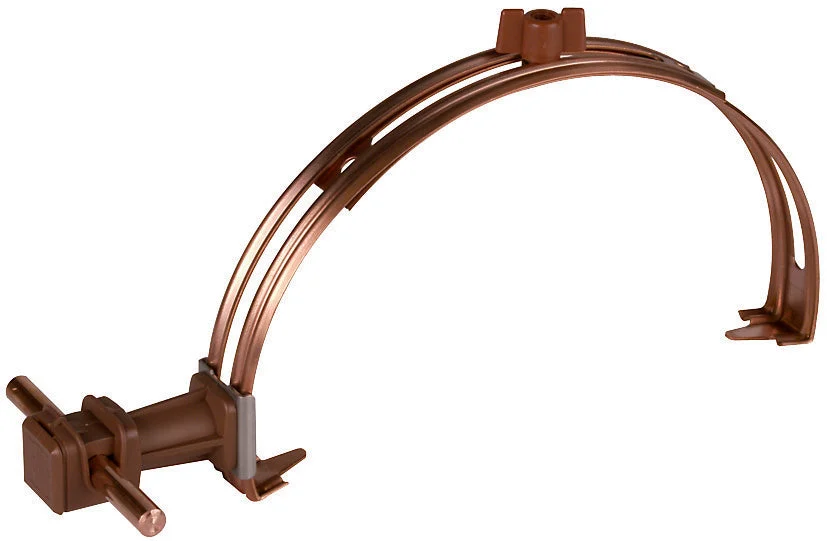

This DEHN DEHNsnap roof conductor holder is specifically designed for lightning protection. It holds the conductor with a clip clamp and is fully adjustable for optimum positioning. The conductor holder has a construction height of 36mm, made of copper and plastic which are resistant to weather and UV, being also halogen-free. It can accommodate a nominal conductor diameter of 8mm, with an adjustable range of 180 – 280mm. The conductor holder allows for flexible routing of the conductor, which can be adjusted laterally from the top center to the bottom. It’s intended for use on the ridge tiles of the roof.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Copper
Assembly height conductor holder (mm) : 36
