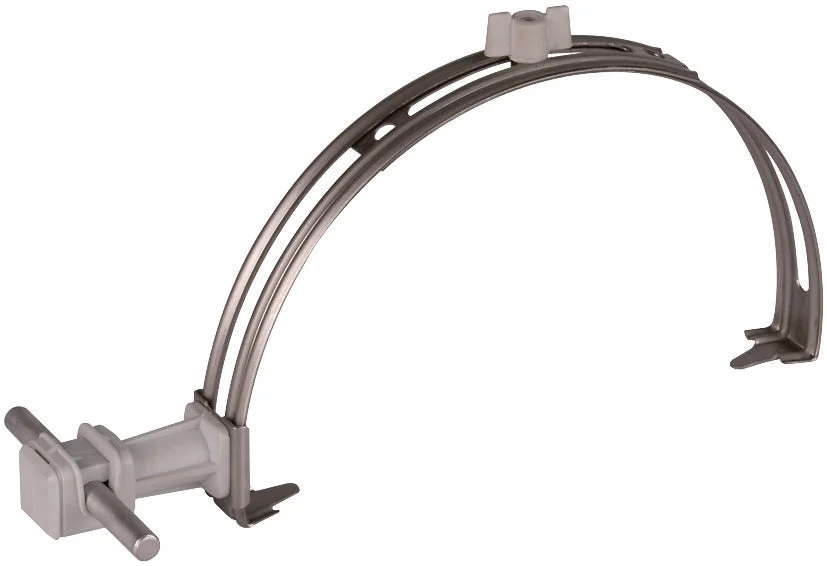

Dehn Roof Conductor Holder Adjustable Stainless Steel With Dehnsnap H 36mm – 204129

The DEHN DEHNsnap roof conductor holder is used for lightning protection, with an adjustable support height of 36mm and a nominal conductor diameter of 8mm. It can be fitted with a clip clamp, providing a range of 180 – 280mm. Designed for usage on roof ridges, the holder allows for adjustable conductor routing from the top centre to the bottom. Made from durable stainless steel 304 (V2A) carrier and weather-resistant, UV-stabilized, halogen-free plastic, it provides an easy, flexible and durable solution for lightning protection installation.

Specifications

Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 36
