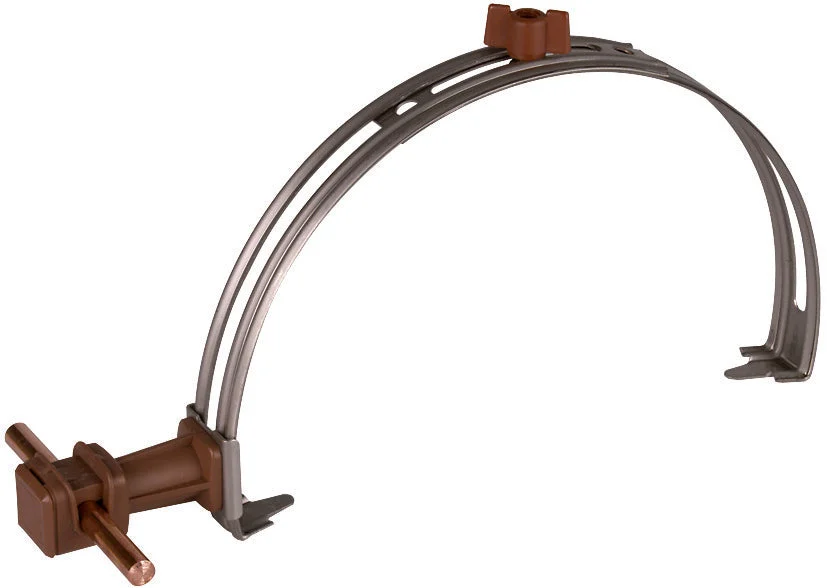

The DEHNsnap Roof Conductor Holder is designed for lightning protection, with an ability to be adjusted steplessly. It features a fixture method for the conductor that utilises a clip clamp, and has a construction height of 36mm for the conductor holder. It is made from weather-resistant plastic and stainless steel 304 (V2A) support, providing UV-stabilisation and being halogen-free. It accommodates a nominal conductor diameter of 8mm and has an adjustable range of 180 – 280mm. This product can be mounted on the ridge tiles, supporting the air-termination conductor, and can adjust laterally from top centre to the bottom, enabling loose conductor routing.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 36
