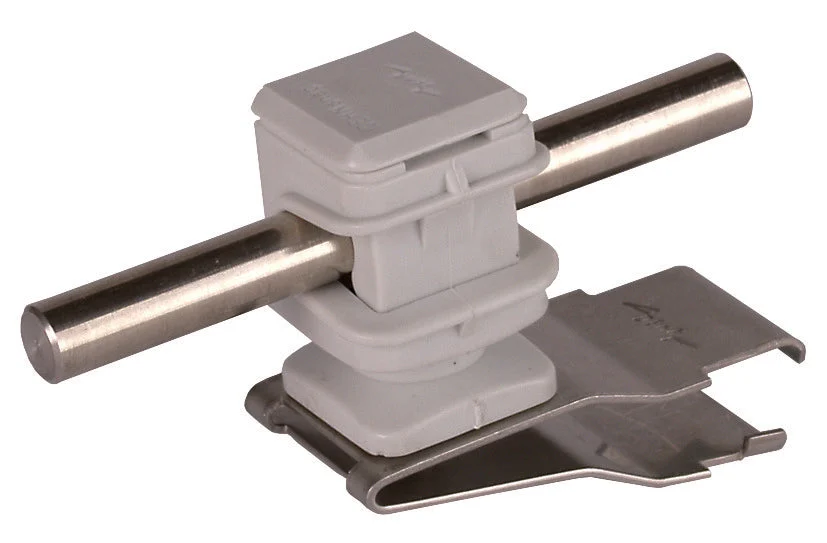

The DEHN DEHNsnap roof conductor holder provides lightning protection and is suitable for use on dry ridge tiles. It utilizes a clip clamping method for conductor attachment. The height of the conductor holder is 16mm, while the length of the support is 53mm. The support is made from 304 stainless steel (V2A) and the holder is made from a weather-resistant, UV-stabilised and halogen-free plastic. It is designed for nominal conductor diameters of 8mm. The unit allows for loose conductor routing.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Clampable
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Length carrier (mm) : 53
Assembly height conductor holder (mm) : 16
