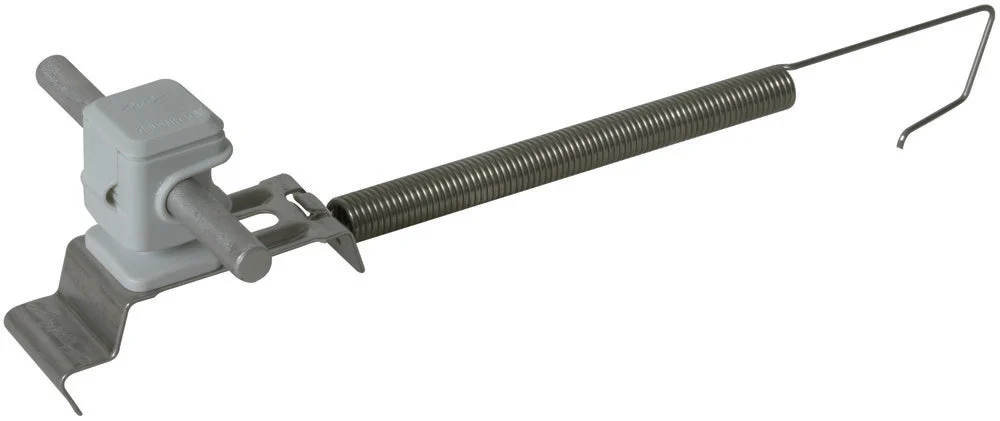

The Dehn SPANNsnap Light is a roof conductor holder designed for lightning protection, and specifically for securing the air-termination conductor on ridge tiles. It features an adjustable range of 180 – 280mm and is equipped with a conductor holder DEHNsnap for flexible conductor routing. The mount is constructed from stainless steel (RVS 304 or V2A) and it uses a clip clamp for conductor attachment. The holder itself is made from a weather-resistant, UV-stabilised and halogen-free plastic and it can hold conductors with a nominal diameter of 8mm. The height of the holder is 16mm.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 16
