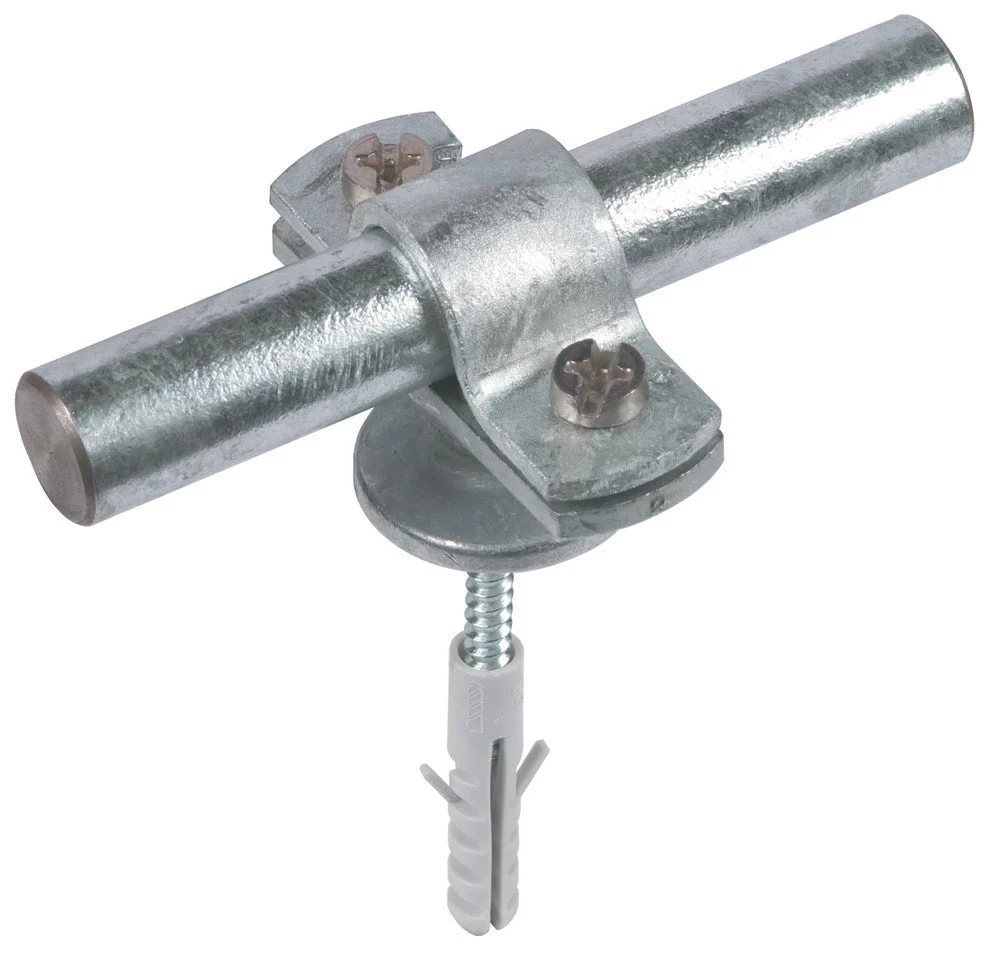

This is a rod holder designed for lightning protection, featuring a slotted saddle clamp and a flange for the purpose of fixing air-termination and earth entry rods of 16 mm diameter. The holder is made of steel and is secured with a plug. The over-legger is also made from steel, while the bottom part is made from pressure die-cast zinc. The assembly comes pre-equipped with a screw and a plug, and is suitable for fixed conductor routing. The thread size adheres to the metric system and measures 8mm.
Specifications
Mounting type bar : With screw clamp
Rod diameter (mm) : 16 mm to 16 mm
Material of holder : Steel galvanised
Mounting type holder : With plug
Material of saddle clamp : Steel galvanised
Material base part : Zinc die-cast
Thread size (metric) : 8
