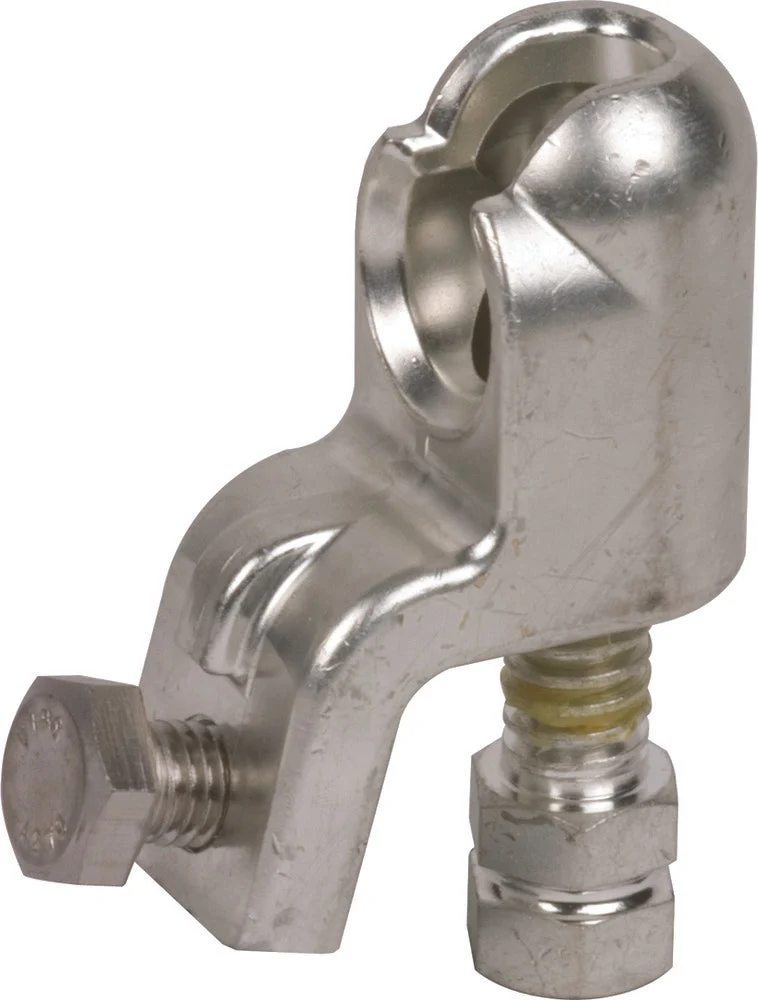

This product is a rigid ball head cap with a hexagon shaft. It is intended for use either as a phase or earth connecting element, as per EN/IEC 61230 (DIN VDE 0683-100) standards. It’s designed for fixed ball points for attachment to earthing and short-circuiting devices. The product offers a maximum short-circuit current of 33.5kA and is suitable for a wire cross-section of 16 – 120mm². It also features a PK1 anti-rotation element and provides secure attachment of the operating rod spindle with a hexagon. The connection method is a rigid ball point of 20mm.
Specifications
Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Connection type : Fixed ball point 20 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with hexagon
Application : Phase-side
