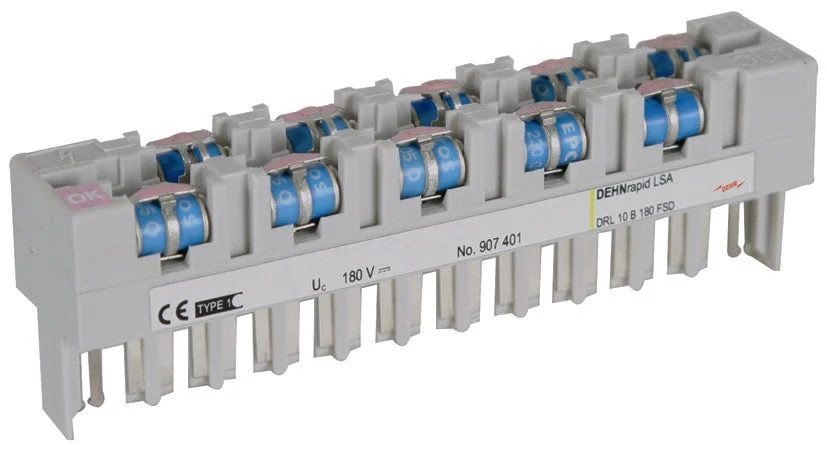

The Dehn DEHNrapid surge protection device is designed for data and M&R applications. It’s of the dataline LSA protection type, with a 1 LSA-Plus connection. It has an impedance of 0.005Ohm, a maximum residual voltage of 0.5kV, and a nominal discharge current (8/20) of 10kA. A change in color indicates its status. This device functions as a lightning current carrying plug-in SPD block (10 pairs) suitable for most applications, and can be upgraded to a combined lightning and surge arrester using a DRL protective plug. The integrated disconnection block contacts permit testing, measuring, and patching with the protection plugged in. For added safety, the three-pole gas discharge tubes come with a visual fault indicator.
Specifications
Nominal voltage DC (V) : 180
Max. continuous voltage AC (V) : 127
Max. continuous voltage DC (V) : 180
Lightning impulse current (10/350 µs) (kA) : 5
Nominal discharge surge current (8/20) (kA) : 10
Nominal load current (A) : 0.4
Voltage protection level core/core (V) : 500
Voltage protection level core/earth (V) : 450
Signalling at the device : Optic
Mounting method : LSA-plus plug-in
Pro-active thermo-control : No
With remote signalling contact : No
Explosion-tested version : No
