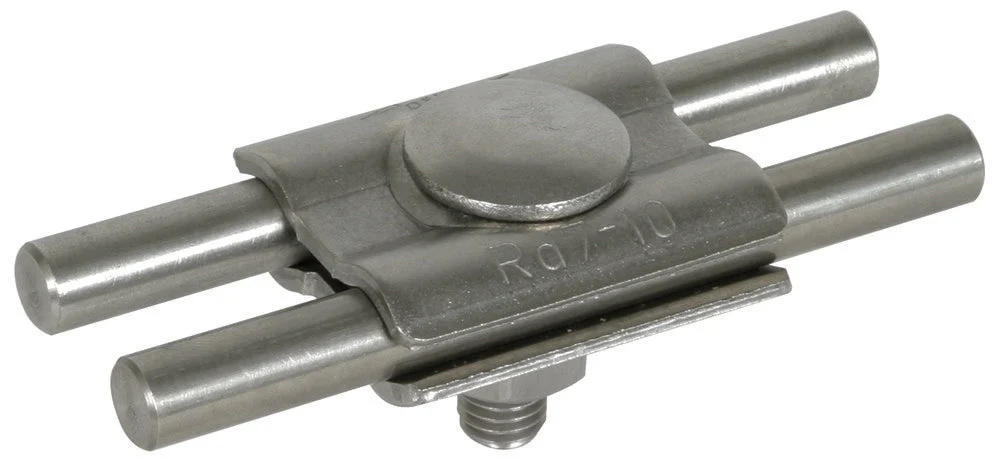

Dehn PV 7.10 FRM10X35 V4A Stainless Steel Parallel Connector – 306029

This is a parallel connector for lightning protection, made from stainless steel 316 (V4A). The connector is designed for parallel connection of two conductors in accordance with EN 62561-1. It’s suitable to connect round conductors with diameters ranging from 7 – 10mm. This particular piece has a flat-head screw for attachment purposes. The connector does not have surface protection and is untreated. It has a lightning current carrying capacity of 100kA (10/350 µs).

Specifications

Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
