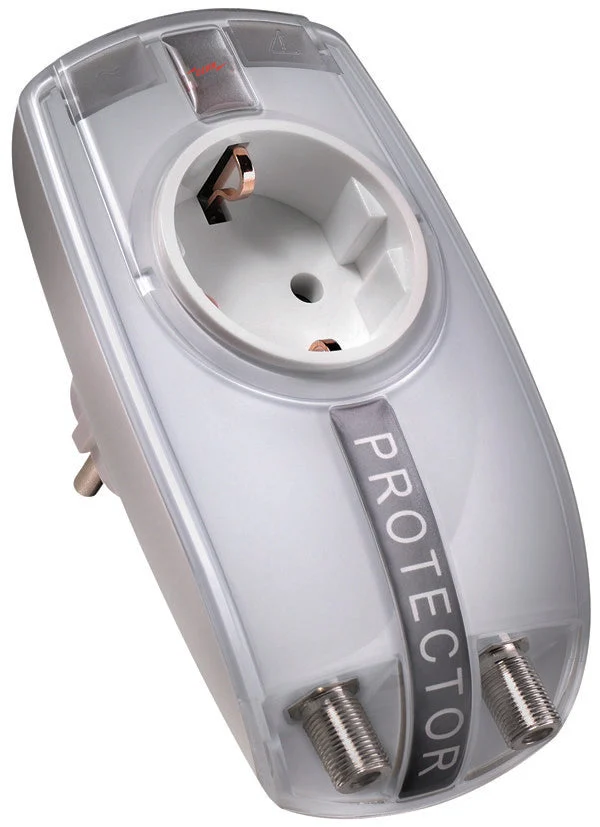

DEHN Protector 230 TV Surge Arrester With Combined Adapter (European Socket) – 909300

The DEHN DEHNprotector is a white surge protective device with applications for the power and antenna side of TV, radio, or SAT receivers. The device features one grounded socket, an on/off switch, and a rectangular housing shape. With an IP20 degree of protection, it can handle a wire cross-section of 2.5mm². Other functionality includes visual indications for operating status and faults, and an integrated child lock for additional safety. This unit is intended for use in protecting against electrical surges.

Specifications

Mounting method : Direct mounting
Nominal voltage AC (V) : 230
Max. continuous voltage AC (V) : 255
Nominal load current (A) : 16
Nominal discharge surge current (8/20) (kA) : 5
Total discharge current (8/20) (kA) : 5
Connector (information technology) : F-Connector
Voltage protection level L-N (kV) : 1.25
Voltage protection level L-PE/N-PE (kV) : 1.5
Signal – max. continuous voltage DC (V) : 60
Signalling at the device : Optic
With remote signalling contact : No
