Dehn Phase Screw Clamp For Connecting Element PK1 – 784301

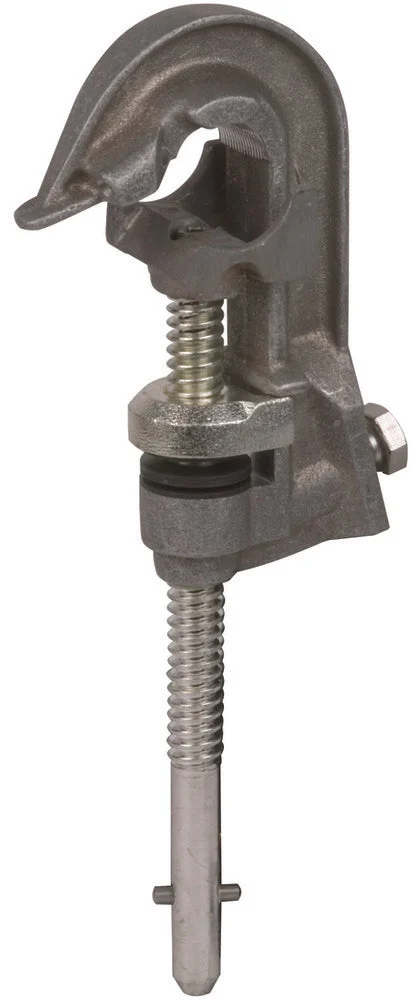

This is a Dehn connection element for earthing and short-circuiting provisions, suitable for wire cross-sections of 16 – 120mm² and clamp ranges of 10 – 65mm. It is designed for overhead power cable connections, featuring a maximum short-circuit current of 33.5kA. The connection element includes an anti-rotation feature, and the operating rod spindle is secured with a transverse pin. Primarily, it is used for phase-side applications. This standard phase screw clamp comes with a long threaded T pin shaft used for connecting phase cables in accordance with EN/IEC 61230 (DIN VDE 0683-100), incorporating a PK1 anti-rotation element.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 10 mm to 65 mm
Connection type : Power cable for overhead lines
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
