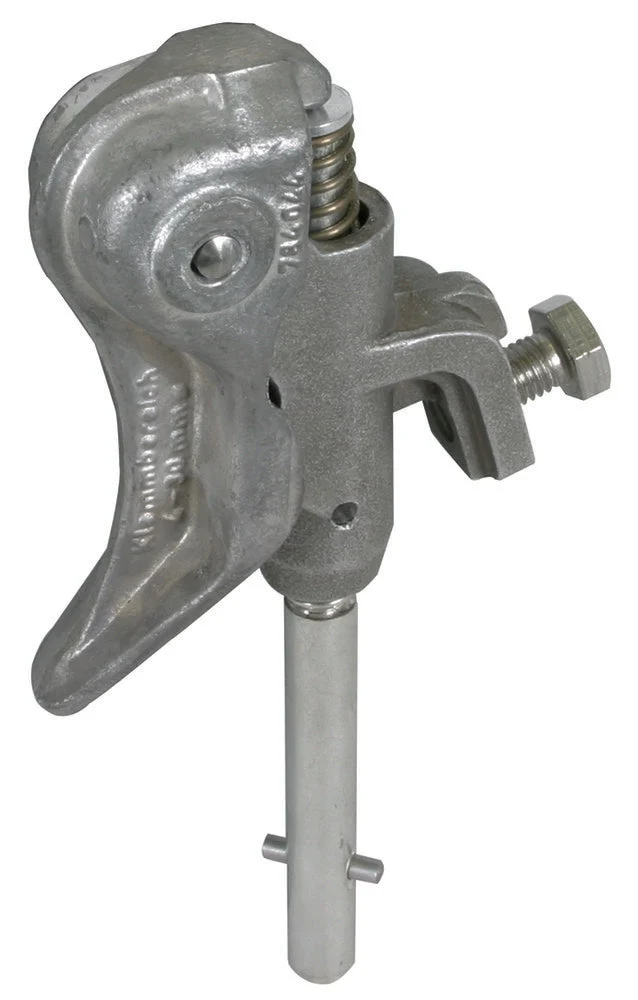

Dehn Phase Screw Clamp D 4-30mm T Pin Shaft PK1 16-70mm2 – 784480

This is a spring-loaded phase screw clamp with a long threaded T pin shaft designed for connecting phase cables of earthing and short-circuiting devices to overhead lines in compliance with EN/IEC 61230 (DIN VDE 0683-100). The device is equipped with a PK1 anti-rotation element and possesses a maximum short-circuit current of 19.5kA. It is suitable for a cable cross-section of 16 – 70mm² and a clamping range of 4 – 30mm. Finally, it involves an above-the-ground cable connection method and includes a spindle control rod attachment with the cross pin. It is applied on the phase side.

Specifications

Max. short circuit current (kA) : 19.5
For wire cross section (mm²) : 16 mm² to 70 mm²
Clamping range (mm) : 4 mm to 30 mm
Connection type : Power cable for overhead lines
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
