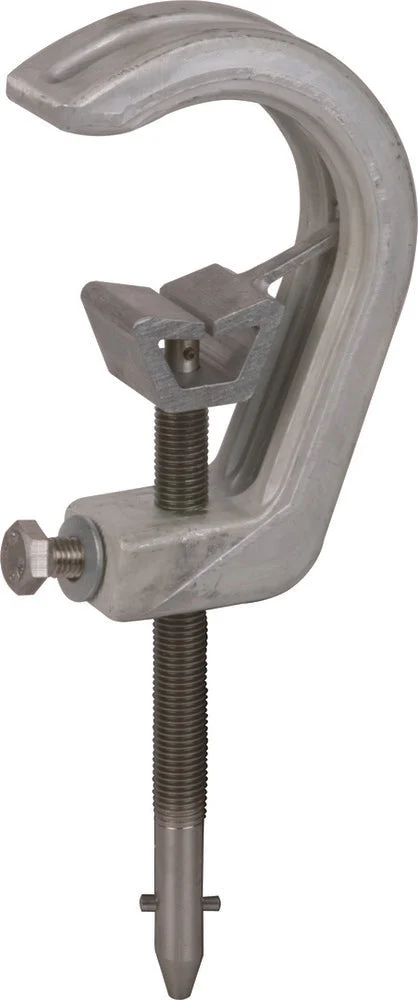

Dehn Phase Screw Clamp D 10-85mm T Pin Shaft PK2 16 – 784085

This is a phase screw clamp intended for the connection of phase cables in earthing and short-circuiting devices to the overhead line. It conforms to EN/IEC 61230 (DIN VDE 0683-100) standards. The clamp features a wide clamping range of 10-85mm and a long threaded T pin shaft to facilitate easier connection. It’s designed to accommodate wire cross sections ranging from 16 to 150mm², and has a maximum short circuit current of 29.6kA. This product also comes with anti-rotation properties offered by its PK1 element, which prevents it from untwisting.

Specifications

Max. short circuit current (kA) : 29.6
For wire cross section (mm²) : 16 mm² to 150 mm²
Clamping range (mm) : 10 mm to 85 mm
Connection type : Power cable for overhead lines
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
