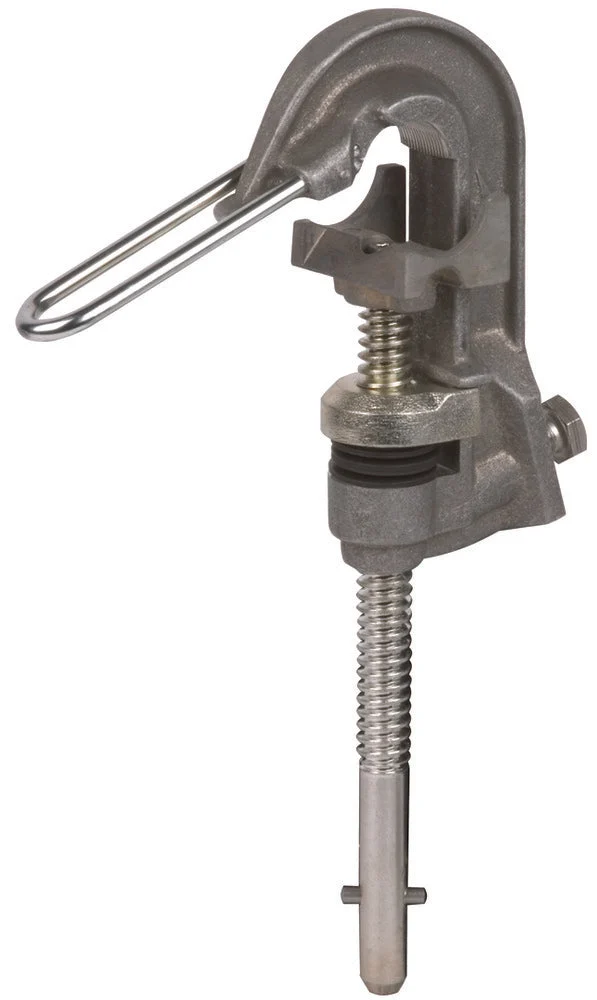

Dehn Phase Screw Clamp D 10-65mm With T-Pin Shaft Connection Element – 784501

This is a Dehn connection element designed for earthing and short-circuiting requirements with a maximum short circuit current of 33.5kA. Suitable for wire cross-sections ranging from 16 – 120mm² and clamping range of 10 – 65mm, it is specifically designed for connecting to overhead power cables. It features an anti-rotation element and provides secure fixation of the operating rod spindle with a cross pin. It is intended for phase-side application and is equipped with a coupling aid and long-threaded T pin shaft for connecting the phase cables, in accordance with EN/IEC 61230 (DIN VDE 0683-100) standards.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 10 mm to 65 mm
Connection type : Power cable for overhead lines
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
