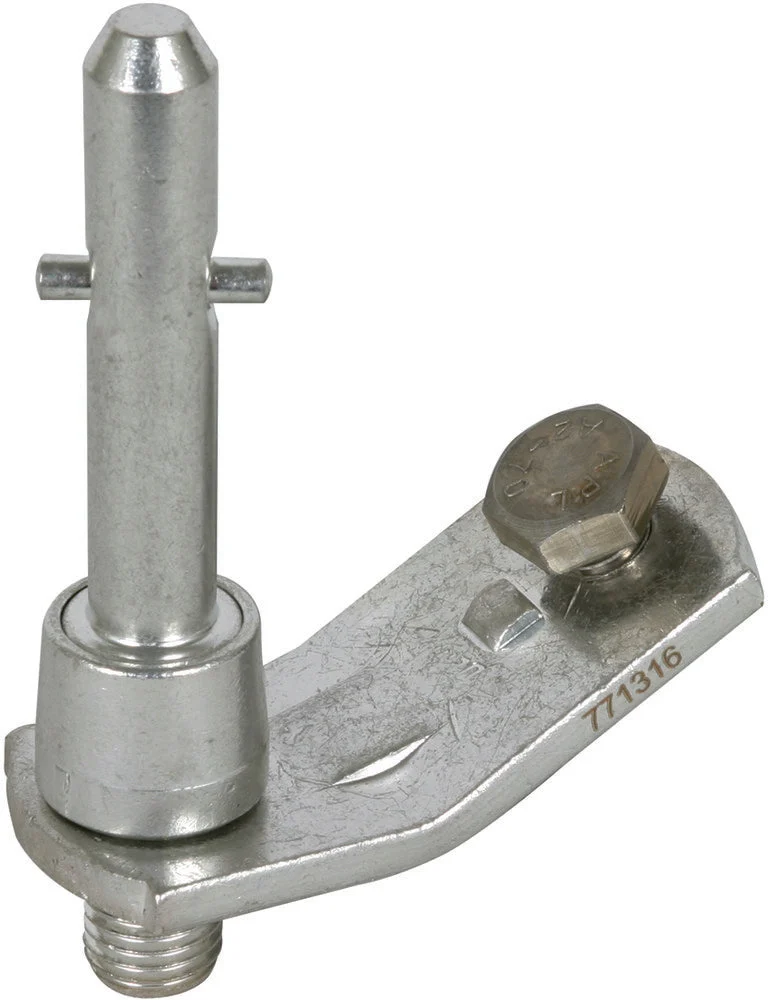

This is a phase connecting element with a T pin shaft, designed in accordance with EN/IEC 61230 (DIN VDE 0683-100), intended for installation on the phase cable end of earthing and short-circuiting devices. It features a maximum short circuit current of 42kA, suitable for a wire cross-section of 16 – 150mm². The connection method is a threaded bolt, preventing twisting and enhancing stability. The operating rod attachment is completed by a spindle with a cross pin. The primary application of this device is phase-side. It also includes a PK1 anti-rotation element for added security.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Connection type : Stud bolt
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
