Dehn Parallel Connector St/Tzn for Rd 7-10mm With Montageset – 306020

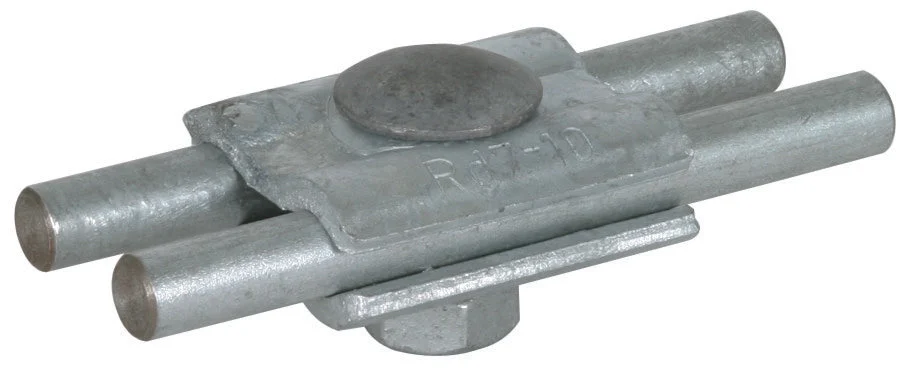

This is a Dehn connector specifically designed for lightning protection. Made of steel and featuring a surface protection that is thermally galvanized, it fulfills the requirements set by EN 62561-1. The connector is intended for binding two conductors in a parallel arrangement and is equipped with flat head screws for attachment. Suitable for round conductors with diameters ranging from 7mm to 10mm, it is designed to accommodate an equal diameter for both conductors with a single screw. It has a lightning current capacity of 100kA for a 10/350 µs waveform.

Specifications

Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
