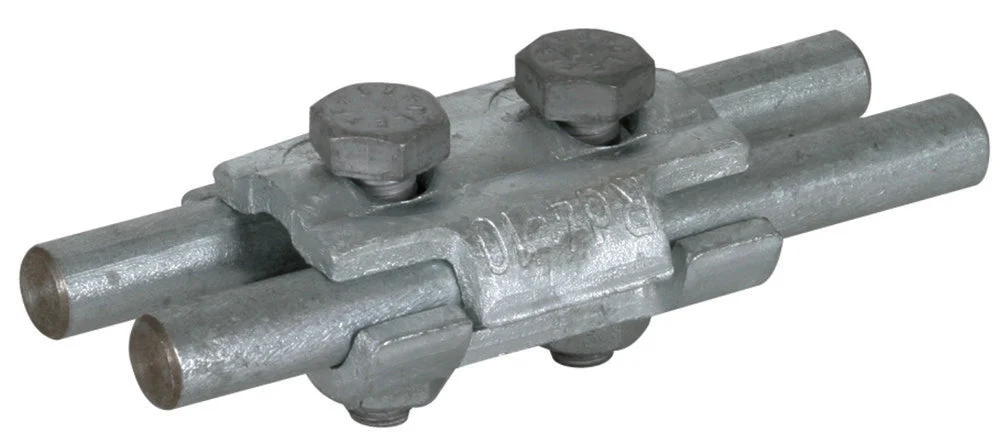

This is a Dehn connector for lightning protection, made of steel and designed for a parallel connection. The connector adheres to EN 62561-1 standards and is used to link two conductors in a parallel arrangement. It supports round conductors with diameters ranging from 4 to 10mm and comes equipped with two hexagonal attachment screws. The connector also includes a thermally galvanized surface protection for added durability. The connector has a lightning current carrying capacity of 100kA for a 10/350 µs waveform. For different diameters, it employs two screws.
Specifications
Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 4 mm to 10 mm
Diameter round conductor 2 (mm) : 4 mm to 10 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
