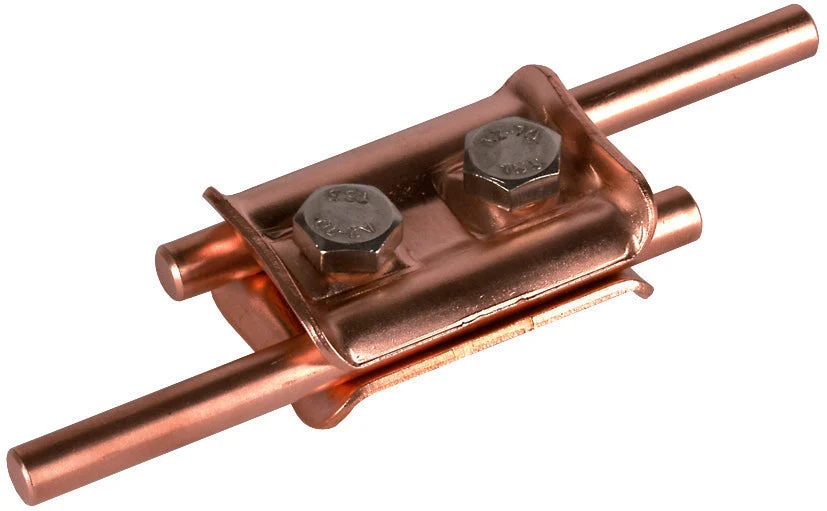

This is a Dehn connector for lightning protection, made of copper, designed for parallel connection. It is suitable for connecting two conductors in parallel arrangement as per EN 62561-1. The connector has equal diameters with two screws for secure fastenings. It holds a lightning current capacity of 100kA (10/350 µs measurement). It can accommodate round conductors with a diameter range from 7 – 10mm. The connector has no surface protection and is untreated, featuring a hexagonal screw for the fixation type.
Specifications
Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
