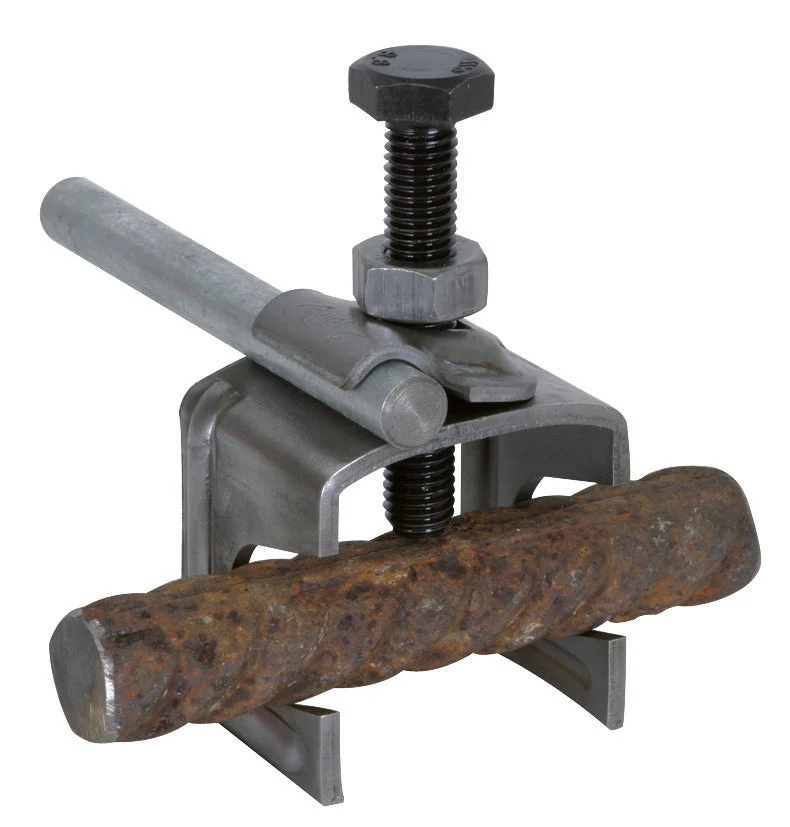

The item is a steel Dehn connector for lightning protection, suitable for T, cross, or parallel plug connections. Its construction accommodates a round conductor with a diameter of 6 – 22mm and a flat conductor with a diameter of 40mm. It also accepts a second round conductor with a diameter of 6 – 10mm. The connector doesn’t have any surface protection and is untreated. The fixing screws are hexagonal in shape. It is a connecting clamp that complies with EN 62561-1 and is designed for attaching reinforcement. It includes a clamping piece making it versatile for flexible connection of round conductors or fixed earthing terminals when secured in the formwork, and specifically designed for small diameters.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 6 mm to 22 mm
Width flat conductor 1 (mm) : 40 mm to 40 mm
Diameter round conductor 2 (mm) : 6 mm to 10 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 50
