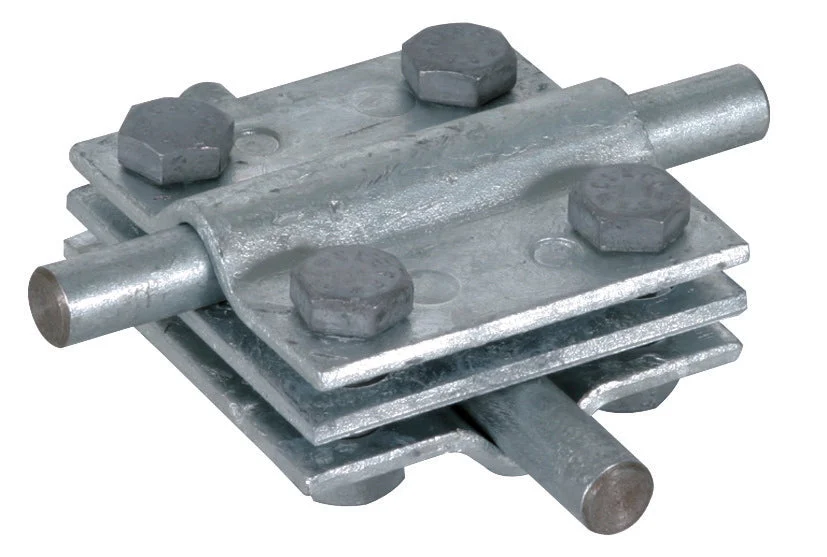

Dehn Overvoltage Safe Assembly Kit ST TZN RD FL – 319201

This is a Dehn connector for lightning protection, made of steel, with a cross coupling connection type. This unit complies with EN 62561-1 for aboveground and underground connection of round and flat conductors. It features an intermediate plate and includes M8 screws. The diameters for the round conductors are 1 8-10mm and 2 8-10mm. The diameters for the flat conductors are both 30mm. The surface protection for the unit is thermal galvanizing, enhancing its durability.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
