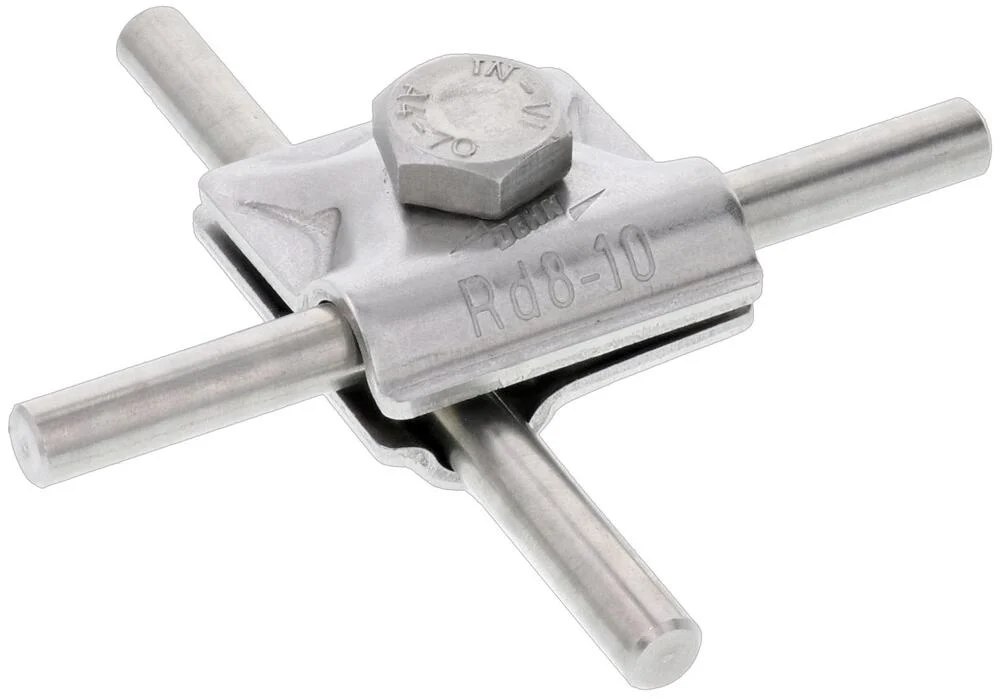

Dehn MV Clamp StSt V4A For Rd 8-10mm With Hexagon Screw – 390079

This is a multipurpose connection clamp designed for universal use as a T-clamp, cross clamp, and parallel clamp for round conductors. It complies with the EN 62561-1 standard. The connection clamp is made of stainless steel 316 (V4A), suitable for lightning protection. It is capable of accommodating a round conductor with a diameter of 8 to 10mm. It is a two-piece set featuring a hexagonal screw and thread in the base part. The surface of this clamp is untreated, hence it doesn’t provide surface protection.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
