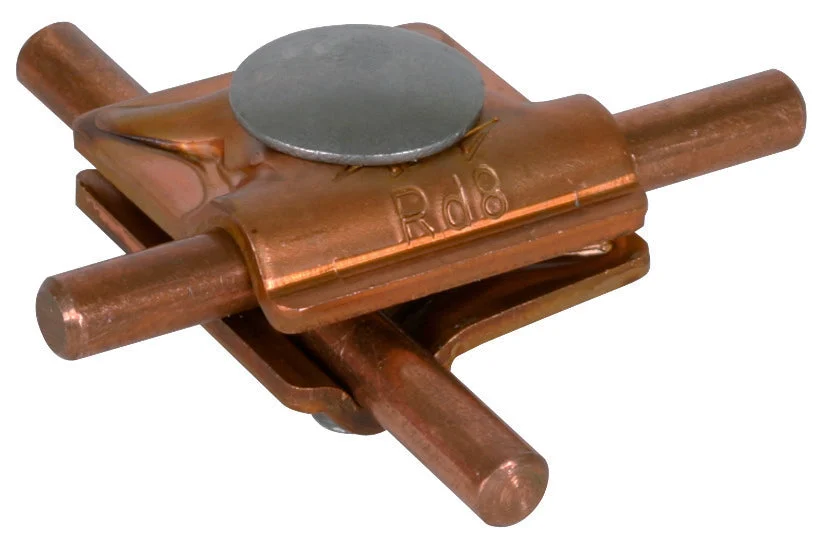

This is a Dehn MV connector built for lightning protection. Made of copper, it can connect as a T, cross, or parallel clamp for round conductors with a diameter of 1 8mm and 2 8mm. The surface protection is untreated. The connector is equipped with flat head screws for mounting and is designed to carry a lightning current of 100kA (10/350 µs). This multipurpose connecting clamp is certified according to EN 62561-1 standards. It comprises a two-piece construction with a truss head screw and anti-rotation protection for universal usage.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
