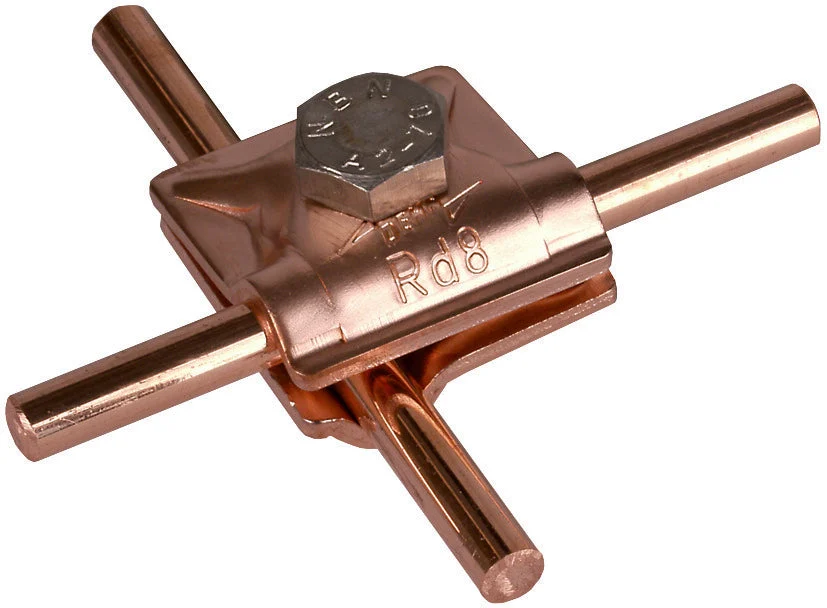

The Dehn MV connector is a multipurpose connecting clamp designed for lightning protection. Made of copper, it serves as a cross clamp, T-clamp, and parallel clamp for round conductors, according to EN 62561-1 standards. The clamp is two-piece, with a hexagon screw and thread in the base part for firm attachment. It has a conductor diameter of 1.8mm and lightning current capacity of 100kA (10/350 µs). It also features an extra surface protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Copper
Surface protection : Other
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
