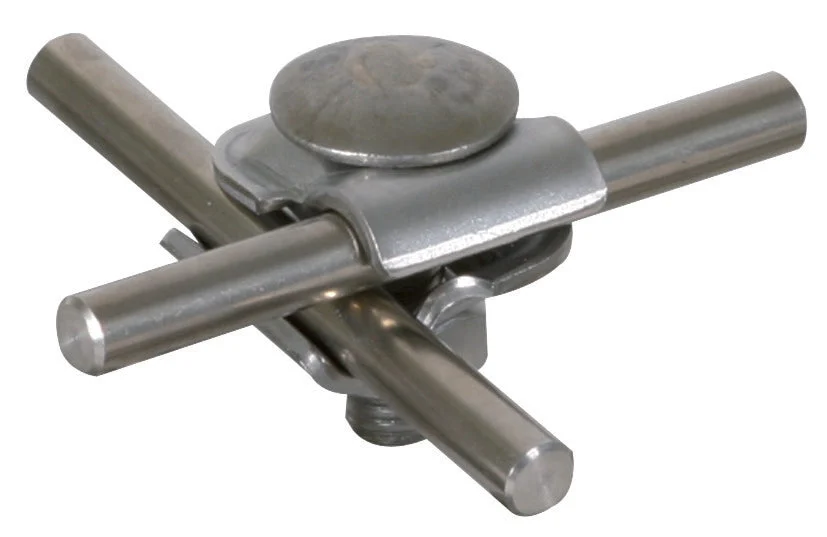

The Dehn MMV connector is designed for lightning protection, made from stainless steel 304 (V2A). It serves as a T, cross, or parallel connector with a round conductor diameter of 6 to 8mm. It doesn’t come with surface protection, thus is untreated. The connector features a flat head screw type for secure attachment. The mini multipurpose connecting clamp adheres to EN 62561-1 standards and is universally usable as a cross clamp, T clamp, and parallel clamp for round conductors. The two-piece clamp includes a truss head screw and anti-rotation protection for added safety and security.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 6 mm to 8 mm
Diameter round conductor 2 (mm) : 6 mm to 8 mm
Material : Stainless steel V2A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
