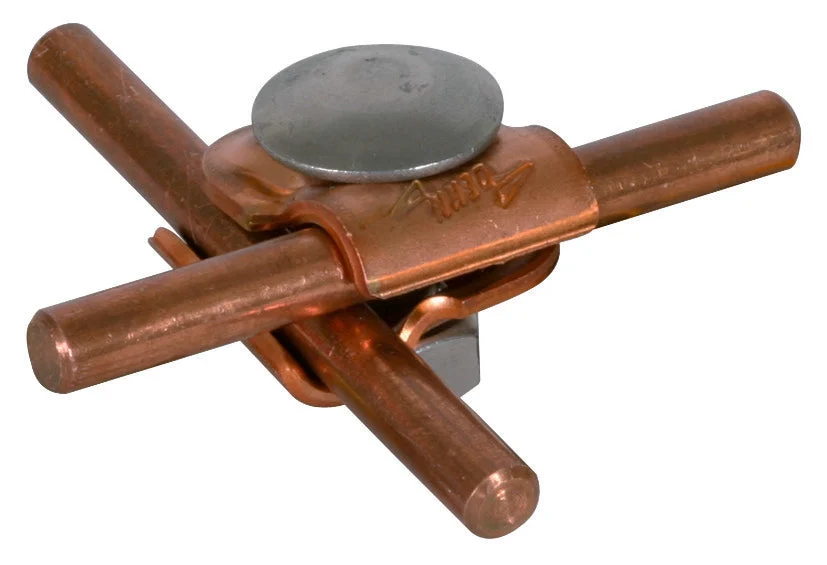

This is a Dehn MMV connector suitable for lightning protection and compliant with EN 62561-1. It is constructed from copper and is versatile enough to be used as a cross, T, or parallel clamp for round conductors. The connector range accommodates round conductors of diameters between 6mm and 8mm. It features a two-piece design, with a flat head screw and anti-rotation protection. Notably, it has an untreated surface and delivers impressive lightning current capacity performance, capable of withstanding a lightning surge current of up to 100kA for 10/350 μs.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 6 mm to 8 mm
Diameter round conductor 2 (mm) : 6 mm to 8 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
