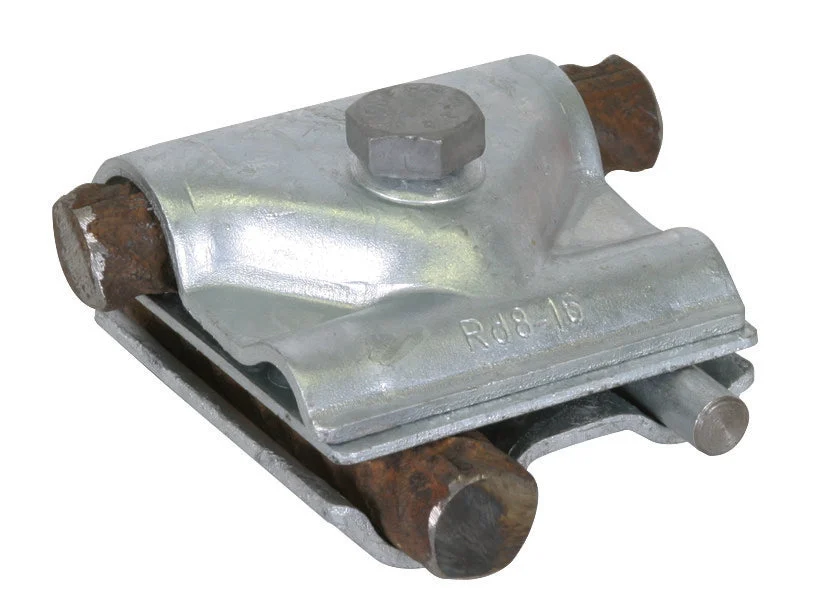

The Dehn Maxi MV connector is designed for lightning protection and is crafted from steel. It serves as a cross, T, and parallel connector for connecting earth rods or reinforcing bars. The connector can accommodate a round conductor with a diameter between 8 to 16mm, while the second conductor can range from 15 to 25mm in diameter. The connector’s surface is thermally galvanized for enhanced durability. It features a three-piece assembly including a hexagonal screw in the base part, according to EN 62561-1 standards, assuring secure and proper attachment.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 16 mm
Diameter round conductor 2 (mm) : 15 mm to 25 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
