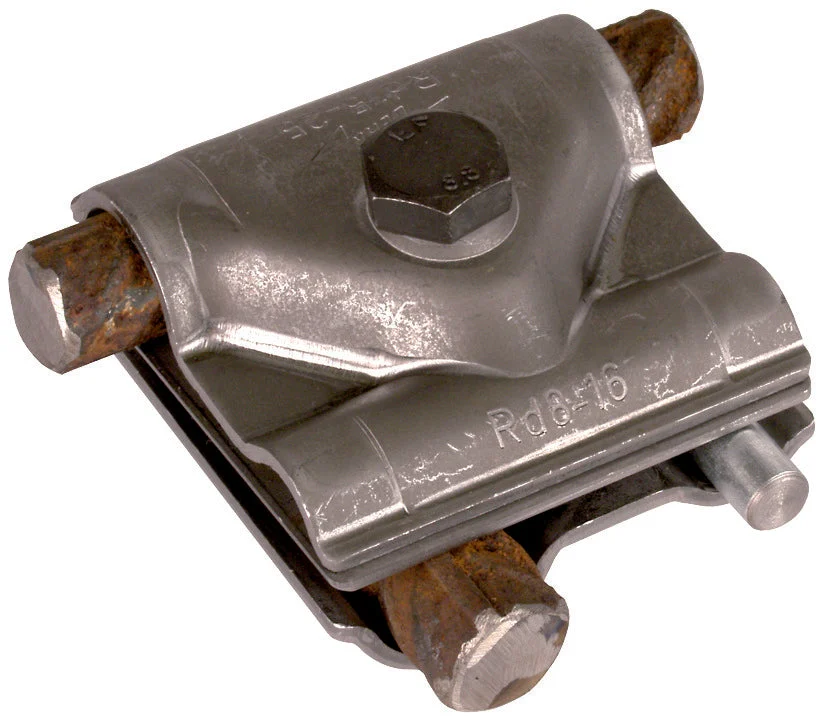

The Dehn Maxi MV connector for lightning protection is a multipurpose connection clamp, ideal for universal use as a cross clamp, T clamp, and parallel clamp for connecting reinforcing bars or earth rods. The connector, made of steel, allows for connections with a round diameter of 1.8 – 16mm and 2.15 – 25mm. It comes with hexagonal screw types for attachment, ensuring a robust and secure connection. Please note that it does not offer surface protection as the surface is untreated. It is a three-piece set, with screw and thread fitted in the base part, adhering to EN 62561-1 standards.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 16 mm
Diameter round conductor 2 (mm) : 15 mm to 25 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 10.2
