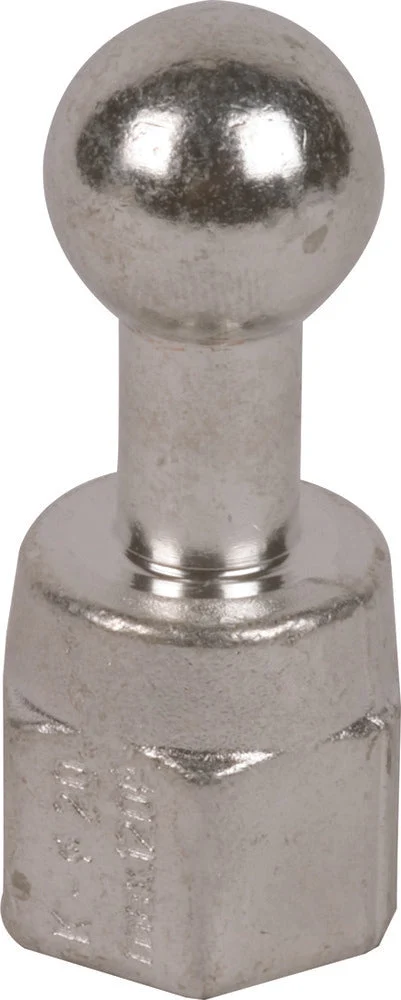

This item is a straight fixed ball point with a female thread designed for use as both the phase-side and earth-side point of connection in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. The maximum short circuit current is 42kA and the fixture point diameter is 25mm. It exhibits high mechanical strength as the thread is not cut, making it suitable for fixing cable lugs or connecting busbars as per DIN 43673-1. Maximum wire cross-section for copper is 150mm². This fixture is straight in design, with an internal thread.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : With internal thread
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 25
Suitable for round conductors : No
