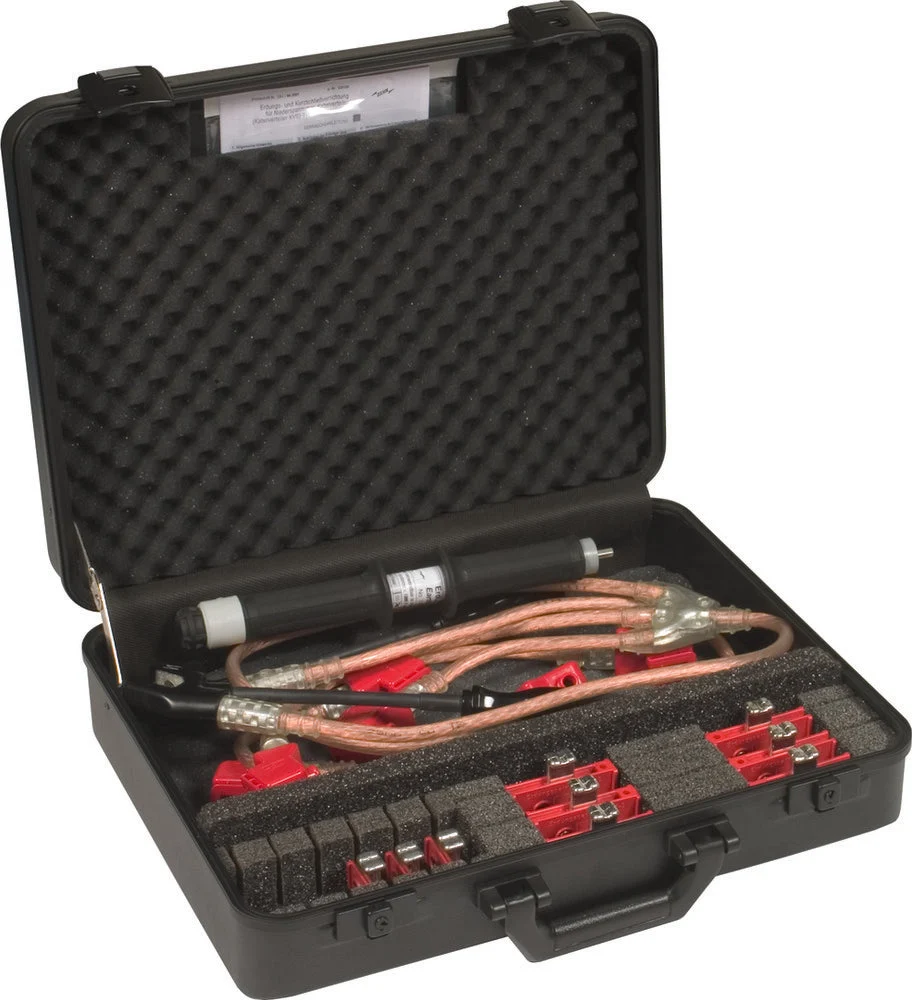

Dehn Low Voltage Earthing And Short Circuiting Kit – 745903

This is a three-pole Dehn VI earthing and short-circuiting kit, made of copper and designed for cable applications. It connects to the ground on one side and features a T-connection for earthing on the phase side. The cross-section of the wire on both the earth and phase sides is 25mm². The earth wire length is 500mm and phase wire length is 200mm. It is manufactured according to EN/IEC 61230 (DIN VDE 0683-100) standards, suitable for earthing and short-circuits at the workspace as per EN 50110 (DIN VDE 0105-100). This fully insulated, shock-proof model comes with a complete kit for low-voltage cable distribution cabinets, variant number: V162LDM. Other cable lengths are available via the EaS configurator on the Dehn website.

Specifications

Model : Cable
Number of poles : 3
Max. short circuit current (kA) : 7
Wire cross section, phase-side (mm²) : 25
Wire cross section, earth-side (mm²) : 25
Length phaseline a (mm) : 200
Length phaseline b (mm) : 400
Length phaseline c (mm) : 600
Length earth line (mm) : 500
Connecting part, phase-side : T-connection for earthing cartridge
Connecting part, earth-side : Other
Fully insulated : Yes
Material : Copper
